KEW系列电绞盘
永磁直流电动绞盘,性价比首选。

GEW系列电绞盘
串激直流电动绞盘,中级用户性能首选。

NEW系列电绞盘
世界上拉力最大的电动绞盘。

液压绞盘机系列
用低廉的价格获得专业的产品性能。


品牌原装应用配件,保证高质与稳定。




K2000P便捷式电动绞盘

K2000Pb便捷式电动绞盘

K3500P便捷式电动绞盘



1) 滚动拉力: 15,000lbs
2) 水面拉力: 12,500lbs
3) 水平牵引: 5,000lbs
4) 线速度: 10ft/min with load
5) 容绳量: 40ft
6) 钢缆直径: 7.5mm
7) 挂钩尺寸: 5/8" opening x 4-1/4"
8) 电源电压: 12V DC
9) 电源线长: 10ft
10) 控制线长: 10ft

尺寸: 41.5 x 34.5 x 28.5cm
净重: 21kg
包装尺寸: 42 x 35 x 30cm
包装重量: 22kg

PowerTools K5000-P车船用便携式电动绞盘由中国汽车绞盘网独家定制并销售,是目前绞盘行业唯一拉力最大的便携绞盘,已广泛应用于汽车运动及水上、机械等工程作业。


Electrical Requirements 12 Volt DC Input
Load Capacities 15,000Lbs.(Rolling)
  12,500Lbs.(Marine)
  5,000Lbs.(Pulling)
Power In and Out Capability Yes
Line Speed 10 Ft.per Minute with Load
Cable Length 40Ft.
Battery Cable Lengths 10Ft.
Remote Cable Length 10Ft.

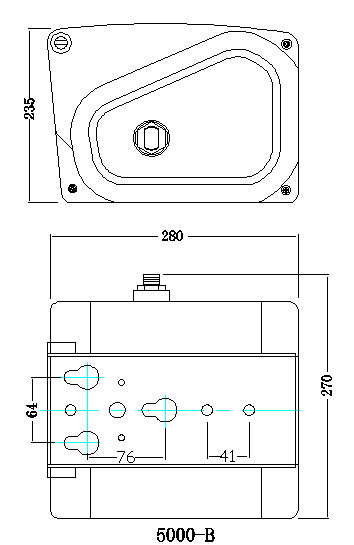

Mounting Plate Dimensions 8-3/4" L x 4 -15/16" H x 3/16"w
Main Hook Size 5/8" Opening x4-1/4" Long
Pulley Hook Size 5/8" Opening x4-5/8" Long
Net Weight 46 Lbs

    由12V直流电供电的功率在1KW左右的永磁电机驱动,减速器采用了三级外齿啮合,其电机、减速器以及滚筒均集成在一个可便携的塑料壳体内。标定拉力5000lbs(2268kgf)。基本配置包括主机、紧急手摇杆、电源线、控制手柄及快装底座。

  • 便携,有一个可折叠的提手柄和快装板。
  • 电动进退双向功能(Power in and Power out)。

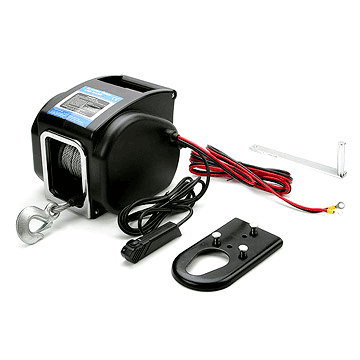

  • 配备附件:带有断路器和插头的电源线;带有防水插头的长距离线控手柄;30英尺带有挂钩的航空钢丝绳;与拖车相配的快装底座;应急用转臂手柄和可调离合器。
  • 绞盘产品严禁用来提升或载人;
  • 不要在满载下连续工作超过一分钟,以免电机烧坏;
  • 在电机工作过热时,请让电机冷却后再继续进行作业;
  • 建议在负荷超过60%标定拉力时使用动滑轮;
  • 有限的产品保质期。

Enjoy the luxury of effortless trailer loading with our new Kp-Series wireless remote control trailer winches!

We've made loading your boat onto the trailer easier than ever! The Kp-Series are remote operated. Say goodbye to sore muscles from cranking and pulling your boat onto the trailer. With Powerwinchs new Kp-Series, stand back and simply push the wireless REMOTE and watch the boat glide on to the trailer! Yes! Get the latest in technology and strength with the Powerwinch Kp-Series state-of-the-art trailer winches.

All Powerwinch 12V trailer winches have smooth-running, heat-treated gear systems for long-life wear and tear. They feature a corrosion-resistant zinc-plated frame, an aircraft quality cable, a level wind system to prevent cable snarls, and UV resistant ABS plastic housing.

The RC 30 & RC 23 feature a built-in light enclosed in the trailer winch casing so you can use your boat at night!
Both the Kp-Series feature an emergency crank that stores conveniently in cover
Both the Kp-Series includes wiring harnesses and all hardware necessary for installation

Powerwinch is the most recognized name in Electric Trailer Winches! Renowned for long-term reliability, testing and the highest quality standards for excellence.



下载K5000P电动绞盘用户手册,12 Volt 5000lb. Electric Trailer Winch(Power in & Power out)Assembly and Operating Instructions
