| | | | | | | | > Heavy Duty Hoist > DHC-3000 |  | | | Heavy Duty Hoist DHC-3000 | | |  | | | | | | FEATURES
● Heavy duty series wound motor gives high torque and fast linespeed
● Detachable control box mounted elsewhere on the vehicle
● High efficiency 3-stage planetary gear train for greater pulling force
● The U.S. Germany , U.K., France, etc patents automatic, full-loadcone holds full load brake
● In compliance with standard of ANSI B30.5 D/d >=18, and wire rope safety factory >=3.5
● Provides an answer to the health and safety recommendations for manual lifiting | | | | | | SPECIFICATION
| | Lifting Load : 907kg / 2,000 lb | | | Motor
12V DC : 4,175 w / 5.6 hp
24V DC : 2,684 w / 3.6hp | | | Gear Train: 3 stage planetary gears
Gear Ratio : 315 : 1 | | Brake: automatic, full load cone brake PLUS auxiliary inverted current brake | | | Wire Rope Size:8.3 mm × 22.9 m (21/64" ×75') | | | Wire Rope Type : galvanized aircraft A7 x 19 | | | Drum Barrel Diameter : 141.3 mm (5.56")
Distance between Flanges : 146.8 mm (5.78") | | | Mounting Bolt Pattern :203.2 mm x 114 mm (8" x 4.5") |
| | | | | | LIFTINGLOAD, LINE SPEED AND ROPE CAPACITY
| Layer of Wire Rope | Lifting Load
kg / lb | Line Speed mpm/fpm | Total Ropeon the Drum m / ft | | 1st | 1,360 / 3,000 | 4.3 / 14.1 | 7.5 / 24.6 | | 2nd | 1,224 / 2,698 | 4.8 / 15.8 | 15.9 / 52.2 | | 3rd | 1,133 / 2,454 | 5.3 / 17.4 | 22.9 / 75.0 |
LINE SPEEDAND AMP. DRAW ( 1st layer of wire rope on the drum)
Lifting Load
kg / lb | Line Speed
mpm / fpm | Amp. Draw 12V | Amp. Draw 24V | Perccentage Duty Cycle
%ED
| | 0 / 0 | 11.7 / 38.4 | 80 | 50 | 25 | | 230/500 | 8.8 / 28.9 | 130 | 75 | 23 | | 450/1,000 | 7.6 / 24.9 | 165 | 100 | 20 | | 680 / 1,500 | 6.5 /21.3 | 190 | 125 | 18 | | 907 / 2,000 | 5.6 / 18.4 | 210 | 140 | 15 | | 1,135 / 2,500 | 4.9 /16.1 | 230 | 155 | 14 | | 1,360/3,000 | 4.3/14.1 | 250 | 170 | 13 |
| |
WARNING
Hoists are not to be used for the lifting or moving of persons
WARRANTY
Each new hoist is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
| | |

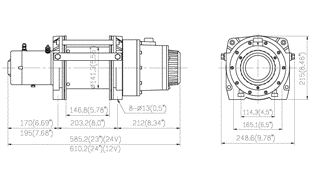

DIMENSIONS(mm/in) | | |  | | | | | | STANDARDACCESSORIES
● Wire rope with hook
● Remote control WA-0310
● Detachable solenoid pack WA-0817
PACKAGE
● Winch weight : 37 kg / 81.6 lb
● Gross Weight : 48 kg / 105.6 lb
● Box Dimension : 620 x 360 x 263 mm(24.4" x 14.2" x 10.4") | | | | | | |
| |
| |
