COMEUP
Blazer M2
电动绞盘 · Blazer M2
Blazer M2/M3 Competition winches were awarded the Taiwan Excellence 2021.
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Twin 8.0 hp 12V series wound motors for the ultimate in power and high speed line pull.
- Two submersible sealed contactors w/silver-alloy contact pads for proven reliability in extreme conditions.
- Rugged 3 stage spur gear train for maximum durability in competition use.
- Dual braking system includes ratchet brake inside the gear box cover and air actuated brakes at each motor.
- Air actuated clutch for driver controlled free spool allowing rapid rope pay-out.
- Upgradable to the triple motor M3 with a bolt-on kit.
- Long drum version available to hold up to 60m (197ft) of rope.
- Retrieval speed of up to 70 mpm (229.7 fpm).
- Standard 33.6:1 gear ratio with optional 28:1 and 41.5:1 gear sets available.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
规格表整理中，欢迎联系我们获取PDF规格书。
性能数据
Line Speed and Amp. Draw (1st layer of synthetic rope on the drum):
| Line Pull | Line Speed (12V) | |||||
|---|---|---|---|---|---|---|
| Gear Ratio | 28.0:1 | 33.6:1 | 41.5:1 | |||
| kg / lb | mpm / fpm | Amp. Draw, A | mpm / fpm | Amp. Draw, A | mpm / fpm | Amp. Draw, A |
| No Load | 70 / 229.7 | 110 | 60 / 197 | 110 | 48 / 157.5 | 110 |
| 910 / 2,000 | 17.5 / 57.4 | 414 | 14.8 / 48.6 | 350 | 13.5 / 44.3 | 414 |
| 1,810 / 4,000 | 9.7 / 31.8 | 715 | 8.6 / 28.2 | 663 | 8.2 / 26.9 | 520 |
| 2,720 / 6,000 | 4.8 / 15.7 | 1,200 | 5.6 / 18.4 | 960 | 6.9 / 22.6 | 760 |
| 3,630 / 8,000 | - | - | 3.2 / 10.5 | 1,200 | 4.6 / 15.1 | 950 |
| 4,535 / 10,000 | - | - | - | - | 2.8 / 9.2 | 1,200 |
Line Pull and Rope Capacity:
| Gear Ratio | 28.0:1 | 33.6:1 | 41.5:1 | Total rope on the Drum, m / ft |
|---|---|---|---|---|
| Layer of Rope | Pull by Layer, kg / lb | |||
| 1st | 2,722 / 6,000 | 3,630 / 8,000 | 4,535 / 10,000 | 5.8 / 19.0 |
| 2nd | 2,101 / 4,632 | 2,802 / 6,177 | 3,502 / 7,721 | 13.4 / 44.0 |
| 3rd | 1,711 / 3,772 | 2,282 / 5,031 | 2,852 / 6,288 | 22.7 / 74.5 |
| 4th | 1,443 / 3,181 | 1,925 / 4,244 | 2,405 / 5,302 | 33.6 / 110.2 |
| 5th | 1,248 / 2,751 | 1,664 / 3,669 | 2,080 / 4,586 | 46 / 151 |
Warning:
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- A minimum of 10 wraps of rope must remain on the drum during use.
Warranty:
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

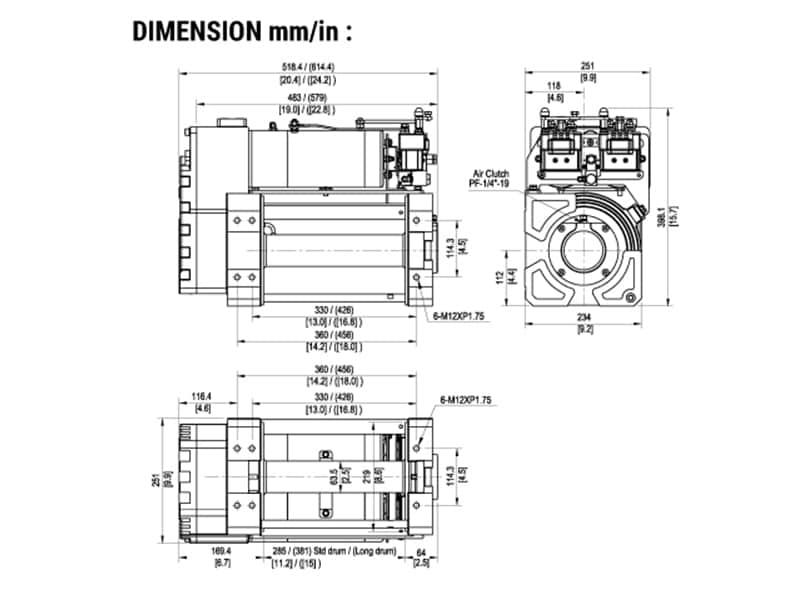

外形尺寸
