电动绞盘 · Cap 9.0s
4.0 Tonnes Self-Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Low-profile, compact, lightweight and fast line speed 9,000 lb of pulling power w/synthetic rope for rock sports.
- 3,400 w / 4.6 hp 12V series wound motor delivers superior torque output.
- Silicone sealed at all motor and gear housing joint for waterproof construction
- Submersible sealed contactor
- 9 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 40 degree Increments.
- 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
- Water-proof remote control with thermometric LED indicator alerts when motor overheating.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 859312 (12V) |
| Rated line pull | 4,082 kg / 9,000 lb single line |
| Motor | 3,430 w / 4.6 hp 12V series wound |
| Gear ratio | 3-stage planetary 156:1 |
| Clutch (freespooling) | Rotating ring gear for manual rope unwinding |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 125L mm (2.5” x 4.9”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 10 mm x 15.2 m (3/8” x 50’) |
| Mounting bolt pattern | 152 mm x 114 mm (6” x 4.5”) |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 13.6 / 44.7 | 55 |
| 907 / 2,000 | 4.7 / 15.3 | 110 |
| 1,814 / 4,000 | 3.4 / 11.2 | 200 |
| 2,722 / 6,000 | 2.8 / 9.1 | 230 |
| 3,629 / 8,000 | 2.3 / 7.6 | 260 |
| 4,082 / 9,000 | 2.0 / 6.5 | 350 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 4,082 / 9,000 | 2.9 / 9.5 |
| 2nd | 3,270 / 7,209 | 6.6 / 21.5 |
| 3rd | 2,728 / 6,014 | 11 / 36 |
| 4th | 2,340 / 5,158 | 15.2 / 50 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

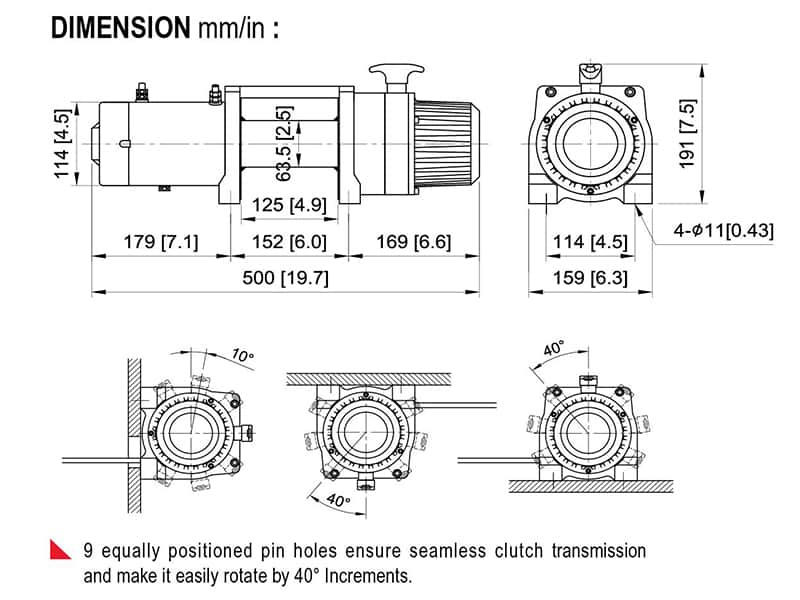

外形尺寸
