COMEUP
Cub 2
电动绞盘 · Cub 2
0.9 Tonnes Powersports Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,000 lbs（907 kgf）
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Winch drum centered avoids tire interference of rope and provides streamlined appearance.
- Mechanical spring applied and permanent magnet motor dynamic brakes together.
- Cam activated clutch device for rapid wire rope payout.
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 122012 |
| Rated line pull | 907 kg (2,000 lb) single line |
| Motor | 600 w / 0.8 hp 12V permanent magnet |
| Gear train | 3-stage planetary 103:1 |
| Clutch (freespooling) | Cam activated |
| Brake | Mechanical spring applied and permanent magnet motor dynamic brakes together |
| Winch construction | Aluminum die cast drum and steel plate housings |
| Drum size | 38 x 75 mm (1.5” x 3”) |
| Control | Handlebar rocker switch |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 4 mm x 15.2 m (5/32” x 50’) |
| Mounting bolt pattern | 76 x 124 mm (3” x 4.9”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 6.1 / 20.0 | 20 |
| 302 / 666 | 4.6 / 15.1 | 50 |
| 605 / 1,334 | 3.1 / 10.2 | 100 |
| 907 / 2,000 | 2.0 / 6.6 | 150 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 907 / 2,000 | 2.4 / 7.9 |
| 2nd | 762 / 1,680 | 5.3 / 17.4 |
| 3rd | 657 / 1,448 | 8.6 / 28.2 |
| 4th | 577 / 1,272 | 12.4 / 40.7 |
| 5th | 515 / 1,135 | 15.2 / 50.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

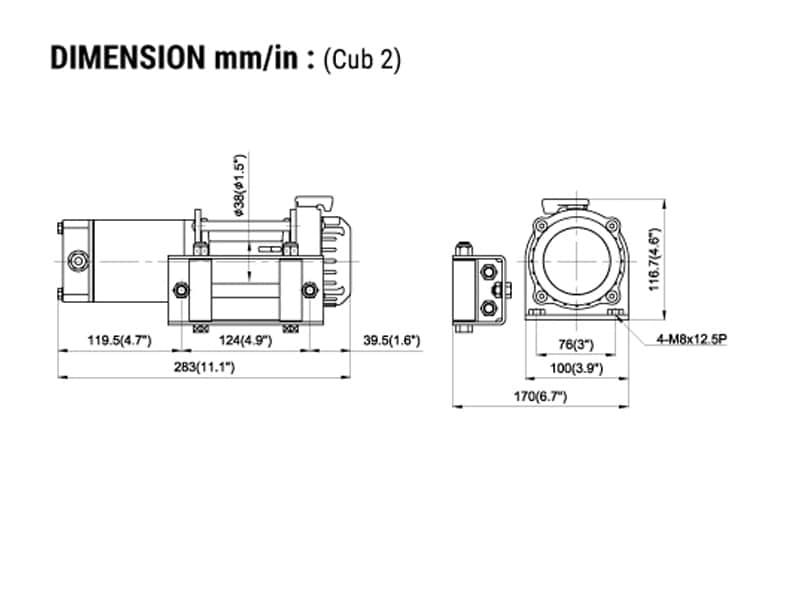

外形尺寸
