Cub 3
电动绞盘 · Cub 3
3,000 lb Powersports Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,000 lbs（1,361 kgf）
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Winch drum centered avoids tire interference of rope and provides streamlined appearance.
- Mechanical spring applied and permanent magnet motor dynamic brakes together.
- Cam activated clutch device for rapid wire rope payout.
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 123561 (12V) / PN 123412 (48V) |
| Rated line pull | 1,361 kg (3,000 lb) single line |
| Line speed (1st layer) | 5.7 mpm / 18.7 fpm, 25A / 12V or 4.6 mpm / 15.1 fpm 5A / 48V at no load 2.0 mpm / 6.6 fpm, 230A / 12V or 55A / 48V at full load |
| Motor | 800 w / 1.0 hp 12V permanent magnet 800 w / 1.0 hp 48V permanent magnet |
| Gear train | 3-stage planetary 138.5:1 |
| Clutch (freespooling) | Sliding pin and ring gear |
| Brake | Mechanical spring applied and permanent magnet motor dynamic brakes together |
| Winch construction | Aluminum die cast housings and drum |
| Drum size | 55 x 105 x 75 L mm (2.2” x 4.1" x 3” L) |
| Control | Handlebar rocker switch |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 4.8 mm x 15.2 m (3/16” x 50’) |
| Mounting bolt pattern | 76 x 124 mm (3” x 4.9”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 48V | 12V | 48V | |
| No load | 5.7 / 18.7 | 4.6 / 15.1 | 25 | 5 |
| 454 / 1,000 | 4.0 / 13.1 | 4.0 / 13.1 | 80 | 15 |
| 907 / 2,000 | 3.0 / 9.8 | 2.6 / 8.5 | 140 | 30 |
| 1,361 / 3,000 | 2.0 / 6.6 | 2.0 / 6.6 | 230 | 55 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 1,361 / 3,000 | 2.8 / 9.3 |
| 2nd | 1,173 / 2,585 | 6.1 / 20.1 |
| 3rd | 1,030 / 2,271 | 9.9 / 32.5 |
| 4th | 918 / 2,025 | 14.1 / 46.3 |
| 5th | 829 / 1,827 | 15.2 / 50 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

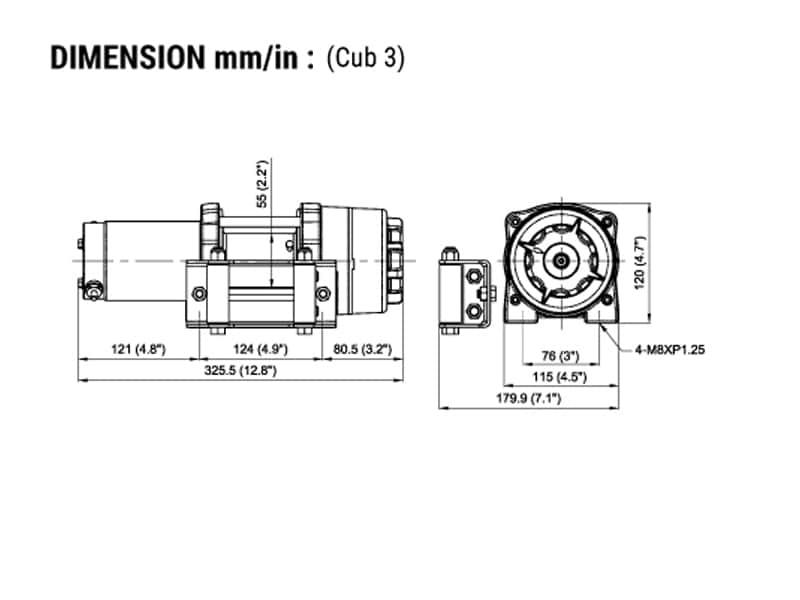

外形尺寸
