Cub 4s carry on
电动绞盘 · Cub 4s carry on
1.8 Tonnes Portable Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,000 lbs（1,814 kgf）
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is easy for front of vehicle.
- 2” rear receiver and quick connector wiring kits for rear of vehicle.
- Winch drum centered avoids tire interference of rope and provides streamlined appearance.
- Mechanical spring applied and permanent magnet motor dynamic brakes together.
- Cam activated clutch device for rapid wire rope payout.
- 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 123930 |
| Rated line pull | 1,814 kg (4,000 lb) single line |
| Line Speed (1st layer) | 4.6 mpm / 15.1 fpm 30 A at no load 2.0 mpm /6.6 fpm 230 A at full load |
| Motor | 800 w / 1.0 hp 12V permanent magnet |
| Gear ratio | 3-stage planetary 191:1 |
| Clutch (freespooling) | Sliding pin and ring gear |
| Brake | Mechanical spring applied and permanent magnet motor dynamic brakes together |
| Winch construction | Aluminum die cast housings and drum |
| Drum size | 55 x 119 mm (2.2” x 4.7”) |
| Control | Remote control w/3 m cord |
| Rope type | Synthetic rope |
| Rope size | 5.5 mm x 15.2 m (7/32” x 50’) |
| Mounting bolt pattern | 76 x 168 mm (3” x 6.6”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 4.6 / 15.1 | 30 |
| 454 / 1,000 | 3.4 / 11.2 | 60 |
| 907 / 2,000 | 2.9 / 9.5 | 120 |
| 1,361 / 3,000 | 2.4 / 7.9 | 180 |
| 1,814 / 4,000 | 2.0 / 6.6 | 230 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 1,814 / 4,000 | 4 / 13.2 |
| 2nd | 1,535 / 3,385 | 8.8 / 28.8 |
| 3rd | 1,331 / 2,933 | 14.2 / 46.7 |
| 4th | 1,174 / 2,588 | 15.2 / 50 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

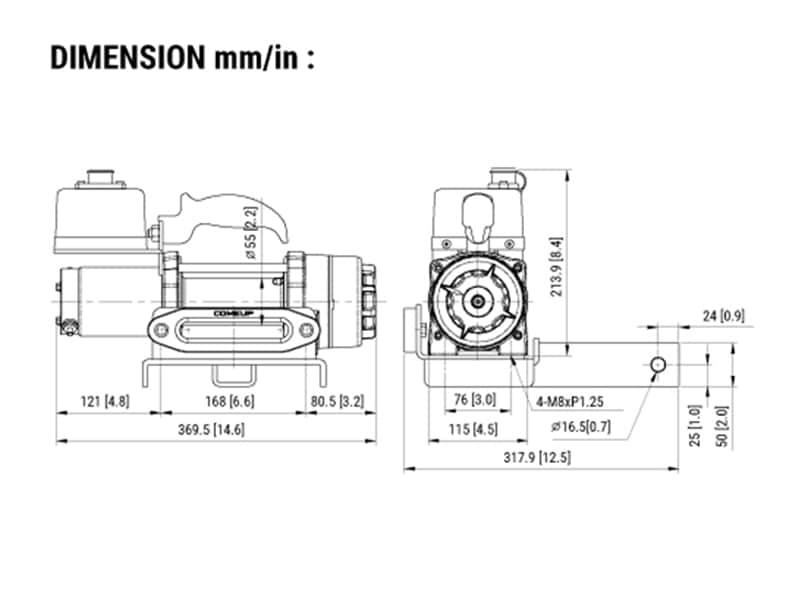

外形尺寸
