DH-500(A)
电动绞盘 · DH-500(A)
Purpose Built For Mobile Vehicle Crane Hoist
牵引绞盘
- 额定拉力
- 1,102 lbs（500 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
The COMEUP DH-series hoist offers a fresh perspective for mobile vehicle crane hoist - hoists rigorously design for mobile crane operators. The drum and cable system delivers maximum speed from the very top layer. DH-series hoist is rated at their top layer of wire rope on the drum, 25% ED duty cycle and maximum starting frequency of 150 times/h at 63% load. In addition, DH-series hoist passed 100% load 200 hrs life test.
DH-series delivers smooth running over heavy-duty the speed range, low amp. draw and low sound level plus the lightweight and compact design for easy installation. This product lineup is designed specifically for light to heavy duty mobile vehicle crane. It's also suitable for wide range of strict lifting applications.
The COMEUP DH-Series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.
规格表
| Specification | Value |
|---|---|
| Part number | PN 752805 (DH-500) PN 752939 (DH-500A) |
| Rated Line Lift | 500 kg (1,102 lb) |
| Lifting Height | 12 m |
| Lifting Speed | 3 mpm / 9.8 fpm (DH-500) 4 mpm / 13 fpm (DH-500A) |
| Motor Output | 300 W x 50A at DC 12V(DH-500) 300 W x 30A at DC 24V(DH-500) |
| Power Supply | DC 12V (DH-500) / DC 24V (DH-500A) |
| Gear Ratio | 276:1 |
| Brake | Mechanical ratchet pawl provides instant and failsafe brakes |
| Drum Size | 95 mm x 76 mm (3.7” x 3.0”) |
| Wire Rope | 6.35 mm x 12 m (1/4” x 39’) , Galvanized aircraft A7 x 19 |
| Hook | Weight hook |
| Controls | - Type: Indirect - Power cord: 5.5 mm² x 2C x 2.9 m - Switch cord: 0.75 mm² x 3C x 4.4 m - Pendant switch: CPB-161 - Control box: Yes |
| Specification | Hoists are not to be used for the lifting or moving of persons |
| Specification | Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY. |

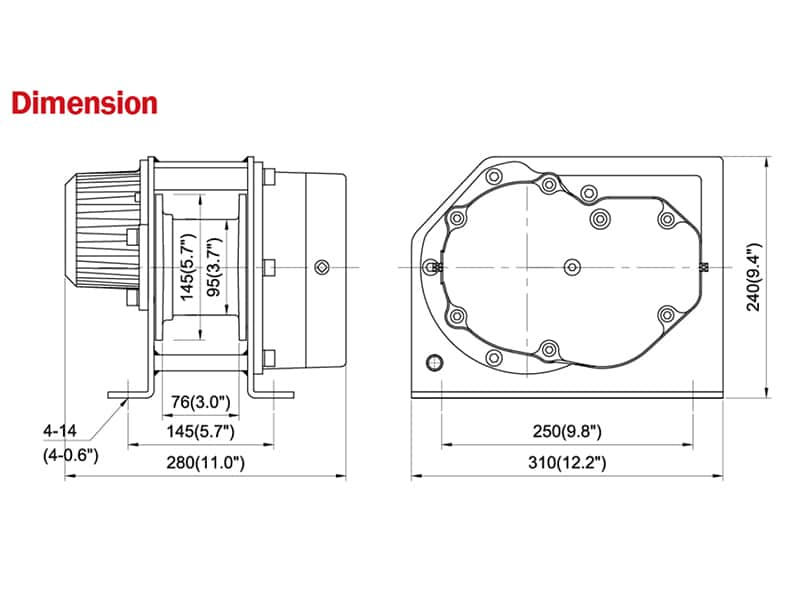

外形尺寸
