电动绞盘 · DV-12
5.4 Tonnes Self- Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Reliable electric winch for working and playing in off-road environments.
- 4,180 w/12V or 2,690 w/24V or 4,180 w /48V series wound motor.
- 10 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 36 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets international standards such as SAE J706, CE Machinery Directive 2006/42/EC and CE EMC directive 2014/30/EU
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 857130 (12V) / PN 857228 (24V) / PN 857270 (48V) |
| Rated line pull | 5,443 kg / 12,000 lb single line |
| Line speed (1st layer) | 8.3 mpm / 27.2 fpm 60 A at 12V or 50A / 24V or 15A / 48V at no load 1.2 mpm / 4.0 fpm 440 A at 12V or 290A / 24V or 100A / 48V at full load |
| Motor | 4,180 w / 5.6 hp 12V series wound 2,690 w / 3.6 hp 24V series wound 4,180 w / 5.6 hp 48V series wound |
| Gear train | 3-stage planetary 261:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 89 mm x 206L mm (3.5” x 8.1”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 9.5 mm x 38 m (3/8” x 125’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) 254 mm x 165 mm (10" x 6.5") |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 48V | ||
| No load | 8.3 / 27.2 | 60 | 50 | 15 |
| 1,814 / 4,000 | 2.6 / 8.6 | 200 | 100 | 45 |
| 3,629 / 8,000 | 1.7 / 5.8 | 310 | 190 | 70 |
| 4,536 / 10,000 | 1.4 / 4.4 | 370 | 230 | 80 |
| 5,443 / 12,000 | 1.2 / 4.0 | 440 | 290 | 100 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Line Speed,mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 5,443 / 12,000 | 8.3 / 27 | 6.6 / 21.5 |
| 2nd | 4,563 / 10,060 | 2.6 / 8.6 | 14.4 / 47.2 |
| 3rd | 3,928 / 8,659 | 1.7 / 5.8 | 23.5 / 77.1 |
| 4th | 3,448 / 7,601 | 1.4 / 4.4 | 33.8 / 110.9 |
| 5th | 3,072 / 6,774 | 1.2 / 4.0 | 38.0 / 125.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

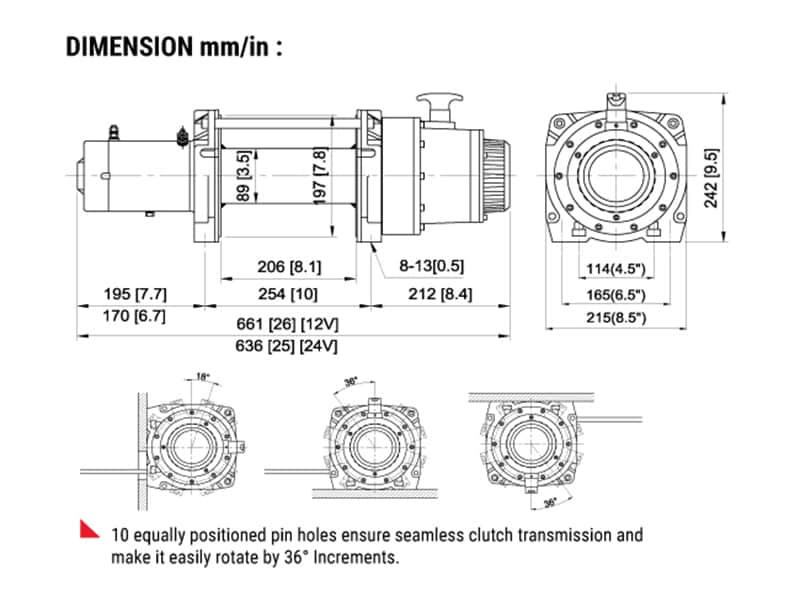

外形尺寸
