DV-12 lite
电动绞盘 · DV-12 lite
5.4 Tonnes Self- Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Reliable electric winch for working and playing in off-road environments.
- 3,430w/12V or 1,940w/24V or 3,430w/48V series wound motor.
- 9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 850012 (12V) / PN 850124 (24V) / PN 850134 (48V) |
| Rated line pull | 5,443 kg / 12,000 lb single line |
| Line speed (1st layer) | 8.0 mpm / 26.2 fpm 50 A at 12V or 30A / 24V or 15A / 48V at no load 1.0 mpm / 3.3 fpm 350 A at 12 V or 210A / 24V or 95A / 48V at full load |
| Motor | 3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound 3,430 w / 4.6 hp 48V series wound |
| Gear train | 3-stage planetary 211:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5mm x 227L mm (2.5” x 8.9”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 9.5 mm x 25 m (3/8” x 82’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 48V | ||
| No load | 8.0 / 26.2 | 50 | 30 | 15 |
| 1,814 / 4,000 | 3.0 / 9.8 | 120 | 70 | 38 |
| 3,629 / 8,000 | 1.5 / 5.0 | 230 | 140 | 65 |
| 4,536 / 10,000 | 1.2 / 4.0 | 290 | 180 | 77 |
| 5,443 / 12,000 | 1.0 / 3.3 | 350 | 210 | 95 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,443 / 12,000 | 5.4 / 17.7 |
| 2nd | 4,319 / 9,522 | 12.2 / 40.0 |
| 3rd | 3,580 / 7,893 | 20.5 / 67.3 |
| 4th | 3,056 / 6,737 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

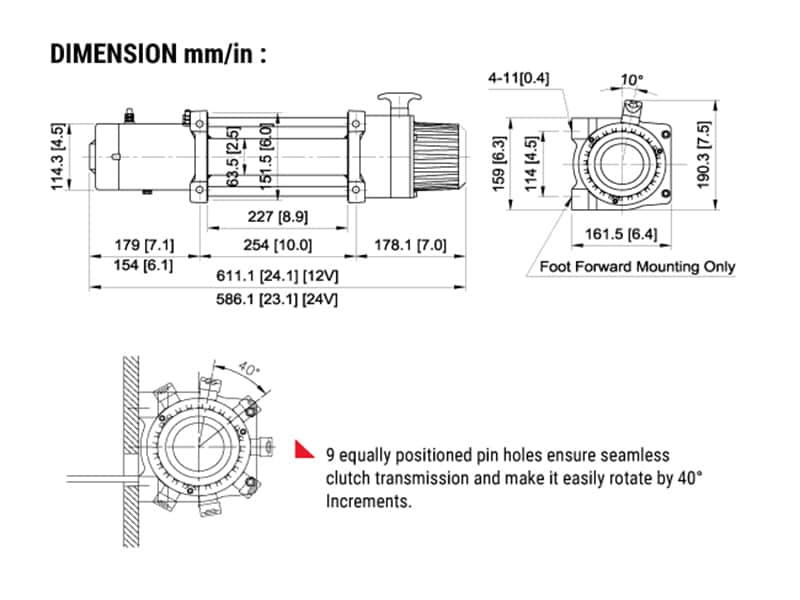

外形尺寸
