电动绞盘 · DV-18
8.1 Tonnes Severe Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 18,000 lbs（8,165 kgf）
- Features compact size, light-weight, extreme low profile and spec. leading 18,000 lb pulling make it the optimal winch to fit in the limited space on most of the current vehicles.
- 10 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 36 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 851823 (12V) / PN 851838 (24V) |
| Rated line pull | 8,181 kg / 18,000 lb single line |
| Motor | 5,220 w / 7.0 hp 12V series wound w/thermal protcetion switch 4,474 w / 6.0 hp 24V series wound w/thermal protcetion switch |
| Gear train | 3-stage planetary 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 89 mm x 192L mm (3.5" x 7.6"L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | 6 × 29 - IWRC |
| Rope size | 12.7 mm x 25 m (1/2” x 82’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) 254 mm x 165 mm (10" x 6.5") |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | |
|---|---|---|---|
| 12V | 24V | ||
| No load | 8.6 / 28.2 | 35 | 40 |
| 1,814 / 4,000 | 4.0 / 13.1 | 115 | 70 |
| 3,630 / 8,000 | 3.6 / 12.0 | 200 | 140 |
| 4,535 / 10,000 | 3.2 / 10.6 | 230 | 180 |
| 5,443 / 12,000 | 2.8 / 9.3 | 260 | 210 |
| 6,804 / 15,000 | 2.3 / 7.5 | 320 | 240 |
| 8,181 / 18,000 | 1.0 / 3.3 | 350 | 290 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 8,181 / 18,000 | 4.7 / 15.4 |
| 2nd | 6,546 / 14,431 | 10.5 / 34.4 |
| 3rd | 5,456 / 12,028 | 17.5 / 57.4 |
| 4th | 4,677 / 10,311 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

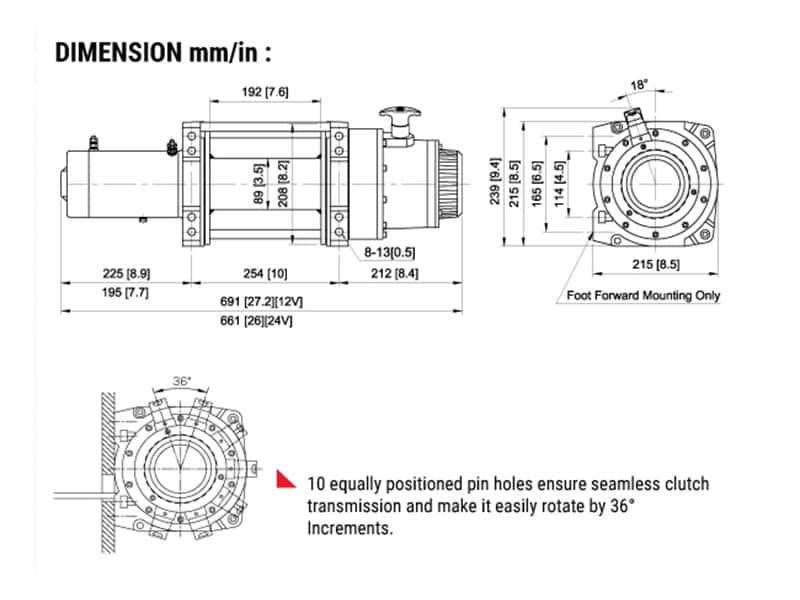

外形尺寸
