电动绞盘 · DV-3500i
3,500 lb Utility Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,500 lbs（1,588 kgf）
- Power in and power out
- Sliding ramping clutch for rapid wire rope payout
- Circuit breakers shut off winch to prevent overheating of motor
- Weather-resistant plastic housing for extra durability
- Dynamic and mechanical brake holds full load
- Integrated contactor for complete protection of wirings
- Compact and light weight allow a wide range of applications on trailers and boats
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 641101 (12V) / PN 641371 (24V) |
| Rated line pull | 1,588 kg / 3,500 lb single line |
| Motor | 900 w / 1.2 hp 12/24V permanent magnet |
| Gear train | 3-stage planetary 170:1 |
| Clutch (freespooling) | Sliding ramping |
| Brake (outside the drum) | Automatic load-holding mechanical brake |
| Drum size | 54 mm x 83L mm (2.1” x 3.3”L) |
| Control | Handheld pendant switch remote control |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 5.5 mm x 15.2 m (7/32” x 50’) |
| Mounting bolt pattern | 86 mm x 93 mm (3.4” x 3.7”) |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | |
|---|---|---|---|
| 12V | 24V | ||
| No load | 6.5 / 21.3 | 25 | 10 |
| 454 / 1,000 | 5.0 / 16.4 | 110 | 55 |
| 907 / 2,000 | 3.6 / 11.8 | 210 | 100 |
| 1,134 / 2,500 | 3.2 / 10.5 | 230 | 115 |
| 1,361 / 3,000 | 2.5 / 8.2 | 260 | 140 |
| 1,588 / 3,500 | 1.8 / 5.9 | 300 | 180 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 1,588 / 3,500 | 2.7 / 8.9 |
| 2nd | 1,340 / 2,954 | 6.0 / 19.6 |
| 3rd | 1,159 / 2,555 | 9.7 / 31.8 |
| 4th | 1,021 / 2,251 | 13.9 / 45.7 |
| 5th | 913 / 2,012 | 15.2 / 50 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.‧
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

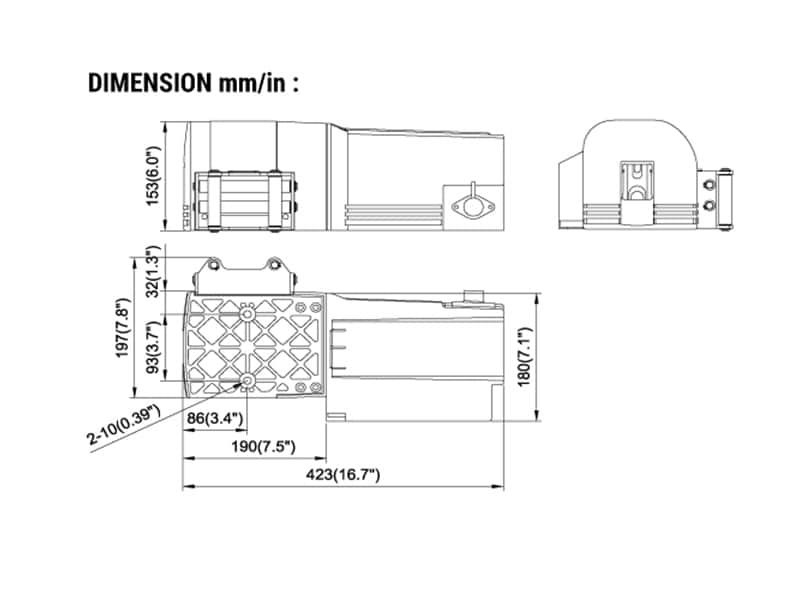

外形尺寸
