COMEUP
DV-6
电动绞盘 · DV-6
2.7 Tonnes Self-Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 6,000 lbs（2,722 kgf）
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- Lightweight and compact design is easy for front of vehicle.
- Submersible sealed contactor handles high amps and allows higher duty cycle
- An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout.
- The U.S Germany, U.K. France, etc patented automatic, full load cone brake structure outside the drum holds the full load without slippage.
- Meets international standards of CE Machinery Directive 2006/42/EC, and CE Electromagnetic Compatibility Directive 2014/30/EU.
- 2” rear receiver and quick connector wiring kits for rear of vehicle as option
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 854750 (12V) Std. drum / PN 854760 (12V) Long drum |
| Rated line pull | 2,722 kg / 6,000 lb single line |
| Motor | 2,390 w / 3.2 hp 12V series wound |
| Gear ratio | 3-stage planetary 216:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | Std. drum : 63.5 mm x 125.5L mm (2.5” x 4.9”L) Long drum : 63.5 mm x 227L mm (2.5" x 8.9"L) |
| Control | Waterproof remote w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | Std. drum : 7.1 mm x 24.4 m (9/32” x 80’) Long drum : 7.1 mm x 30.5 m (9/32" x 100') |
| Mounting bolt pattern | Std. drum : 152.4 mm x 114 mm (6” x 4.5”) Long drum : 254 mm x 114 mm (10" x 4.5") Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 8.0 / 26.2 | 60 |
| 907 / 2,000 | 5.2 / 17 | 150 |
| 1,814 / 4,000 | 3.1 / 10.2 | 240 |
| 2,722 / 6,000 | 2.0 / 6.5 | 300 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft | |
|---|---|---|---|
| Std. drum | Long drum | ||
| 1st | 2,722 / 6,000 | 3.8 / 12.5 | 7 / 22.9 |
| 2nd | 2,266 / 4,995 | 8.1 / 27.5 | 15.4 / 50.4 |
| 3rd | 1,941 / 4,279 | 13.7 / 45 | 25.2 / 82.5 |
| 4th | 1,697 / 3,742 | 19.8 / 65.1 | 30.5 / 100 |
| 5th | 1,508 / 3,325 | 24.4 / 80 | - |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

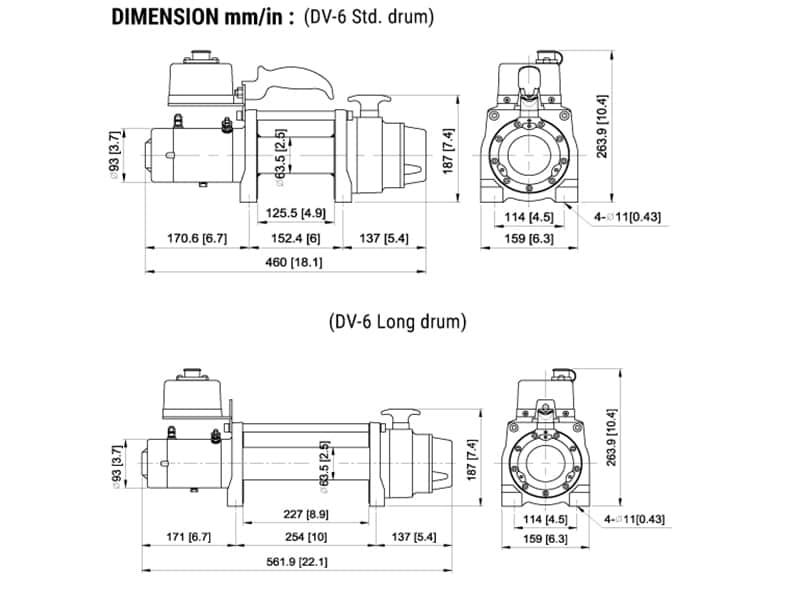

外形尺寸
