COMEUP
DV-6s carry on
电动绞盘 · DV-6s carry on
2.7 Tonnes Portable Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 6,000 lbs（2,722 kgf）
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- Lightweight and compact design is easy for front of vehicle.
- 2” rear receiver and quick connector wiring kits for rear of vehicle.
- Submersible sealed contactor handles high amps and allows higher duty cycle
- 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
- The U.S Germany, U.K. France, etc patented automatic, full load cone brake structure outside the drum holds the full load without slippage..
- Meets international standards of CE Machinery Directive 2006/42/EC, and CE Electromagnetic Compatibility Directive 2014/30/EU
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 854765 (12V) |
| Rated line pull | 2,722 kg / 6,000 lb single line |
| Motor | 2,390 w / 3.2 hp 12V series wound |
| Gear ratio | 3-stage planetary 216:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 125.5L mm (2.5” x 4.9”L) |
| Control | Waterproof remote w/ 5 m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 8 mm x 24.4 m (5/16” x 80’) |
| Mounting bolt pattern | 152.4 mm x 114 mm (6” x 4.5”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 8.1 / 26.5 | 60 |
| 907 / 2,000 | 5.3 / 17.3 | 150 |
| 1,814 / 4,000 | 3.1 / 10.3 | 240 |
| 2,722 / 6,000 | 2.0 / 6.6 | 300 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 2,722 / 6,000 | 3.5 / 11.3 |
| 2nd | 2,266 / 4,995 | 7.7 / 25.2 |
| 3rd | 1,941 / 4,279 | 12.6 / 41.5 |
| 4th | 1,697 / 3,742 | 18.4 / 60.3 |
| 5th | 1,508 / 3,325 | 24.4 / 80 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

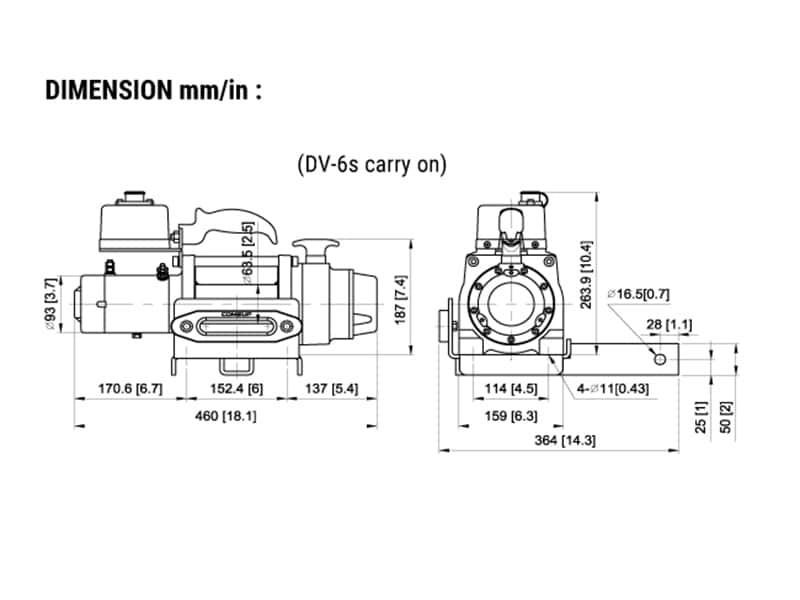

外形尺寸
