DV-9i
电动绞盘 · DV-9i
9,000 lb Self- Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Reliable electric winch for working and playing in offroad environments.
- 3,430w/12V or 1,940w/24V or 3,430 w /48V series wound motor.
- 9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 856360 (12V) / PN 856388 (24V) / PN 856390 (48V) |
| Rated line pull | 4,082 kg / 9,000 lb single line |
| Line speed (1st layer) | 13.4 mpm / 44 fpm 55A / 12V or 30A / 24V or 13A / 48V at no load 2.0 mpm / 6.4 fpm 350A / 12V or 210A / 24V or 105A / 48V at full load |
| Motor | 3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound 3,430 w / 4.6 hp 48V series wound |
| Gear train | 3-stage planetary 156:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 229L mm (2.5” x 9”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 8.3 mm x 30.5 m (21/64” x 100’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 48V | ||
| No load | 13.4 / 44.0 | 55 | 30 | 13 |
| 907 / 2,000 | 4.6 / 15.1 | 110 | 65 | 31 |
| 1,814 / 4,000 | 3.4 / 11.2 | 200 | 100 | 50 |
| 2,722 / 6,000 | 2.7 / 9.0 | 230 | 130 | 65 |
| 3,629 / 8,000 | 2.3 / 7.5 | 260 | 170 | 88 |
| 4,082 / 9,000 | 2.0 / 6.4 | 350 | 210 | 105 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 4,082 / 9,000 | 6.1 / 20.0 |
| 2nd | 3,316 / 7,310 | 13.6 / 44.7 |
| 3rd | 2,792 / 6,154 | 22.6 / 74.0 |
| 4th | 2,410 / 5,314 | 30.5 / 100 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

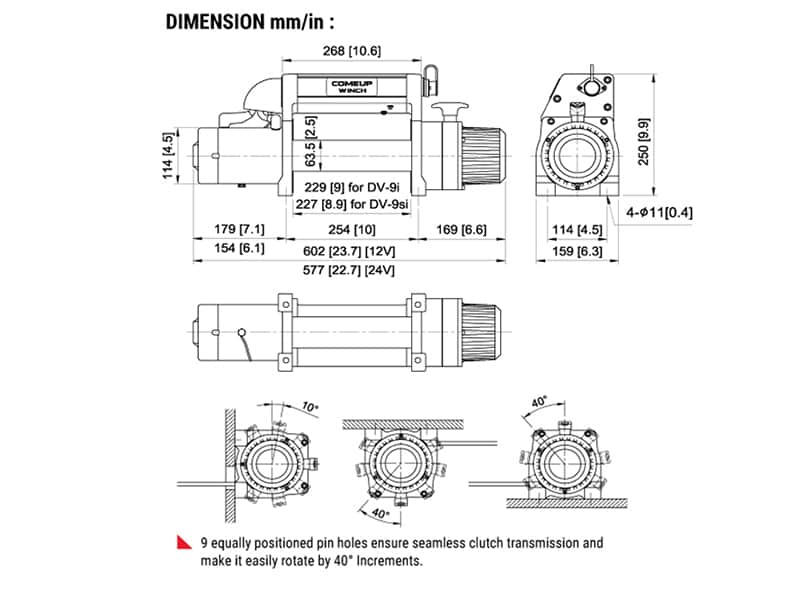

外形尺寸
