COMEUP
GIO 120
电动绞盘 · GIO 120
5.4 Tonnes Self-Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- 12V DC reliable recovery winch rated at 12,000 lb.pulling exceeds your expectations.
- Series-wound motor for power and fast line speed.
- Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
- Exclusive brake design with No. 37C device for better winching control.
- Durable, smooth, and reliable three-stage planetary gear train.
- Fine powder coated finish provides better weather resistance.
- Waterproof rated IP 68.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 853832 |
| Rated line pull | 5,443 kg / 12,000 lb single line |
| Motor | 4,847 w / 6.5 hp 12V series wound |
| Gear train | 3-stage planetary 234.6:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (inside the drum) | Exclusive brake design with No. 37C device |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 222.5L mm (2.5” x 8.8”L) |
| Control | Waterproof reomte w/ 5 m (17') cord |
| Rope size | Galvanized aircraft A7 x 19 wire rope, 10.3 mm x 25.5 m (13/32” x 83.7’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward or foot down mounting workable |
| Finish | Matte black powder-coated |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 7.8 / 25.6 | 45 |
| 1,361 / 3,000 | 4.5 / 14.6 | 110 |
| 2,722 / 6,000 | 4.0 / 13 | 165 |
| 4,082 / 9,000 | 3.5 / 11.4 | 220 |
| 5,443 / 12,000 | 2.7 / 8.9 | 340 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,443 / 12,000 | 4.9 / 16.0 |
| 2nd | 4,188 / 9,233 | 11.1 / 36.4 |
| 3rd | 3,404 / 7,505 | 18.7 / 61.4 |
| 4th | 2,867 / 6,321 | 25.5 / 83.7 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.

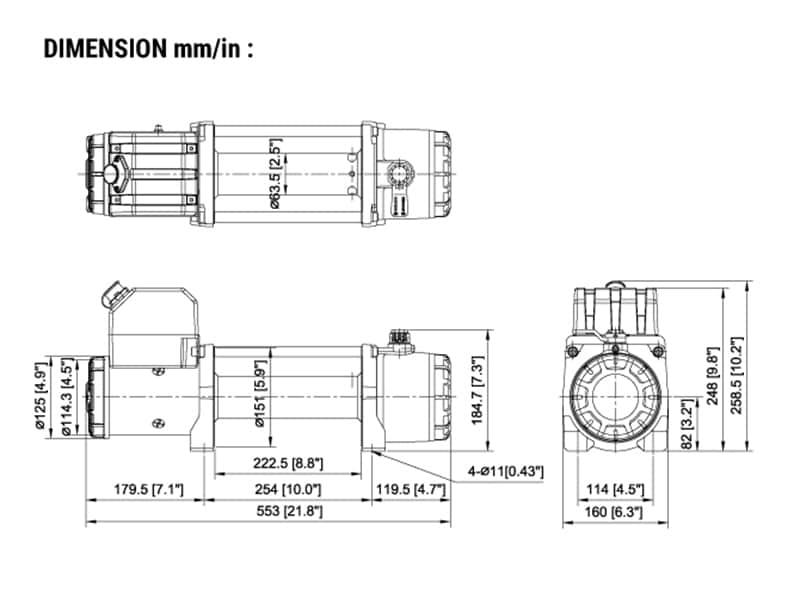

外形尺寸
