GTD-1200
电动绞盘 · GTD-1200
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 1,200 lbs（544 kgf）
- Provides an answer to the health and safety recommendations for manual lifting.
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead.
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 751321 (12V) / PN 751375 (24V) PN 751220 (12V) w / o controls and rope assembly PN 751265 (24V) w / o controls and rope assembly |
| Rated load | 544 kg / 1,200 lb |
| Line speed (at 1st layer of rope) | 12V : 7.4 mpm / 24.3 fpm 30A at no load 5.5 mpm / 18.0 fpm 130A at full load 24V : 5.9 mpm / 19.4 fpm 15A at no load 5.0 mpm / 16.4 fpm 50A at full load |
| Motor | 900 w / 1.2 hp 12/24V permanent magnet |
| Gear ratio | 3-stage planetary gear 216:1 |
| Brake (outside the drum) | Mechanical cone brake and permanent motor dynamic brakes together |
| Hoist construction | Aluminum die cast housings with cast iron drum |
| Drum size | 89 x 73 mm (3.5” x 2.9") |
| Control | Remote control with 5 m (17') lead |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 4.8 mm x 18.3 m (3/16" x 60') |
| Mounting bolt pattern | 114 x 101.6 mm (4.5” x 4”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU - ASME B30.5 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, | Line Speed, mpm / fpm | Amp Draw, A | Percentage Duty Cycle, | ||
|---|---|---|---|---|---|
| kg / lb | 12V | 24V | 12V | 24V | Min / 10 min |
| No load | 7.4 / 24.3 | 5.9 / 19.4 | 30 | 15 | 2.5 |
| 136 / 300 | 6.9 / 22.6 | 5.7 / 18.7 | 55 | 19 | 2.3 |
| 272 / 600 | 6.4 / 21.0 | 5.5 / 18.0 | 75 | 25 | 2.0 |
| 408 / 900 | 5.9 / 19.4 | 5.2 / 17.1 | 95 | 36 | 1.8 |
| 544 / 1,200 | 5.5 / 18.0 | 5.0 / 16.4 | 130 | 50 | 1.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope | Load by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 544 / 1,200 | 5.5 / 1.8 | 4.2 / 13.8 |
| 2nd | 494 / 1,089 | 6.1 / 19.9 | 8.8 / 28.9 |
| 3rd | 452 / 966 | 6.6 / 21.7 | 13.8 / 45.3 |
| 4th | 416 / 917 | 7.2 / 23.6 | 18.3 / 60 |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated load shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

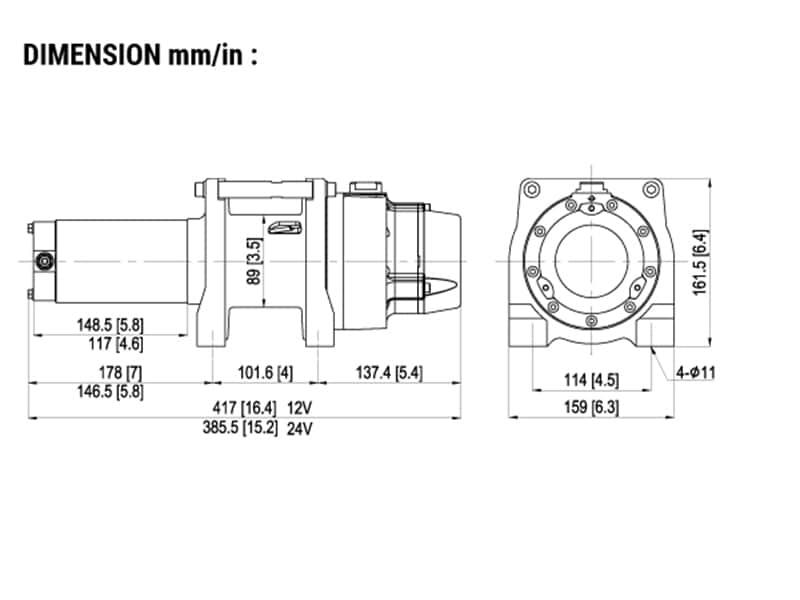

外形尺寸
