COMEUP
GTD-2200
电动绞盘 · GTD-2200
998 kg Heavy Duty Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,200 lbs（998 kgf）
- Provides an answer to the health and safety recommendations for manual lifting
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 752103 (12V) / PN 752104 (24V) PN 752003 (12V) w / o controls and rope assembly PN 752004 (24V) w / o controls and rope assembly |
| Rated line lift | 998 kg (2,200 lb) 907 kg (2,000 lb) ANSI B30.5 rating |
| Line speed (at 1st layer of rope) | 12V : 4.5 mpm / 14.8 fpm 25A at no load 3.5 mpm / 11.5 fpm 120A at full load 24V : 5.8 mpm / 19 fpm 18A at no load 5.0 mpm / 16.4 fpm 50A at full load |
| Motor | 2,830 w / 3.8 hp 12V permanent magnet 1,940 w / 2.6 hp 24V permanent magnet |
| Gear ratio | 3-stage planetary gear 211:1 |
| Brake (outside the drum) | Mechanical cone brake and permanent motor dynamic brakes together |
| Hoist construction | Aluminum die cast housings with cast iron drum |
| Drum size | 108 x 105 mm (4.3” x 4.1") |
| Control | Remote control with 5 m (17') lead |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 6.4 mm x 30 m (1/4" x 100') |
| Mounting bolt pattern | 114.3 x 152 mm (4.5” x 6”) ; 165.1 x 152 mm (6.5" x 6") Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU - ASME B30.5 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, | Line Speed, mpm / fpm | Amp Draw, A | Percentage Duty Cycle, | ||
|---|---|---|---|---|---|
| kg / lb | 12V | 24V | 12V | 24V | Min / 10 min |
| No load | 5.3 / 17.4 | 5.8 / 19.0 | 25 | 18 | Cont. |
| 181 / 400 | 5.2 / 17.1 | 5.7 / 18.7 | 50 | 25 | 8.0 |
| 362 / 800 | 5.1 / 16.7 | 5.6 / 18.4 | 75 | 35 | 6.0 |
| 544 / 1,200 | 4.8 / 15.7 | 5.5 / 18 | 95 | 55 | 4.0 |
| 771 / 1,700 | 4.6 / 15.1 | 5.3 / 17.4 | 115 | 70 | 3.0 |
| 998 / 2,200 | 4.2 / 13.8 | 5.0 / 16.4 | 135 | 90 | 2.0 |
Line Pull and Rope Capacity:
| Layer of Wire Rope | Load by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft | |
|---|---|---|---|---|
| 12V | 24V | |||
| 1st | 998 / 2,200 | 4.2 / 13.8 | 5.0 / 16.4 | 5.6 / 18.4 |
| 2nd | 898 / 1,980 | 4.6./ 15.1 | 5.5 / 18.0 | 11.8 / 38.7 |
| 3rd | 816 / 1,799 | 5.1 / 16.7 | 6.1 / 20.0 | 18.7 / 61.4 |
| 4th | 747 / 1,647 | 5.6 / 18.4 | 6.6 / 21.6 | 26.2 / 66 |
| 5th | 689 / 1,519 | 6.0 / 19.7 | 7.2 / 23.6 | 30 / 100 |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated load shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

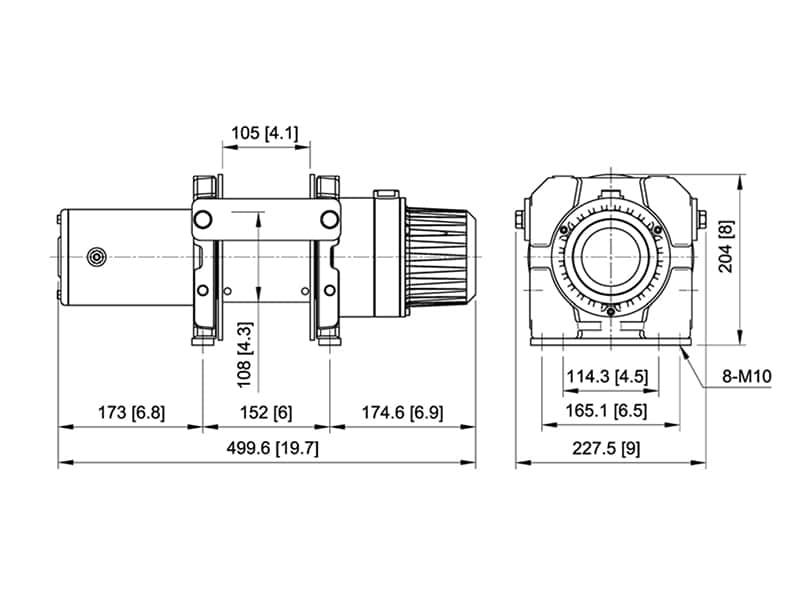

外形尺寸
