GTD-2800
电动绞盘 · GTD-2800
1,270 kg Heavy Duty Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 2,800 lbs（1,270 kgf）
- Provides an answer to the health and safety recommendations for manual lifting
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 753022 (12V) / PN 753033 (24V) PN 753002 (12V) w / o controls and rope assembly PN 753003 (24V) w / o controls and rope assembly |
| Rated load | 1,270 kg (2,800 lb) |
| Line speed (at 1st layer of rope) | 12V : 4.6 mpm / 15.1 fpm 25A at no load 3.0 mpm / 9.7 fpm 140A at full load 24V : 6.0 mpm / 19.7 fpm 22A at no load 4.4 mpm / 14.4 fpm 100A at full load |
| Motor | 2,830 w / 3.8 hp 12V permanent magnet 1,940 w / 2.6 hp 24V permanent magnet |
| Gear ratio | 3-stage planetary gear 261:1 |
| Brake (outside the drum) | Mechanical cone brake and permanent motor dynamic brakes together |
| Hoist construction | Aluminum die cast housings with cast iron drum |
| Drum size | 135 x 114.6 mm (5.3” x 4.5") |
| Control | Remote control with 5 m (17') lead |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 7.9 mm x 28 m (5/16" x 92') |
| Mounting bolt pattern | 114.3 x 171 mm (4.5” x 6.8”) ; 165.1 x 171 mm (6.5" x 6.8") Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU - ASME B30.5 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, | Line Speed, mpm / fpm | Amp Draw, A | Percentage Duty Cycle, | ||
|---|---|---|---|---|---|
| kg / lb | 12V | 24V | 12V | 24V | Min / 10 min |
| No load | 5.8 / 19 | 6.0 / 19.7 | 30 | 22 | Count. |
| 227 / 500 | 5.5 / 18 | 5.7 / 18.7 | 45 | 30 | 7.0 |
| 454 / 1,000 | 5.1 / 16.7 | 5.5 / 18.0 | 70 | 45 | 4.5 |
| 680 / 1,500 | 4.6 / 15.1 | 5.3 / 17.4 | 95 | 60 | 3.0 |
| 907 / 2,000 | 4.3 / 14.1 | 4.6 / 15.1 | 135 | 80 | 2.5 |
| 1,270 / 2,800 | 4.0 / 13.1 | 4.4 / 14.4 | 160 | 100 | 2.0 |
Line Pull and Rope Capacity:
| Layer of Wire Rope | Load by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft | |
|---|---|---|---|---|
| 12V | 24V | |||
| 1st | 1,270 / 2,800 | 4.0 / 13.1 | 4.4 / 14.4 | 6.3 / 20.7 |
| 2nd | 1,144 / 2,522 | 4.4 / 14.4 | 4.9 / 16.1 | 13.3 / 43.6 |
| 3rd | 1,040 / 2,292 | 4.8 / 15.7 | 5.4 / 17.7 | 21 / 68.6 |
| 4th | 954 / 2,103 | 5.3 / 17.4 | 5.8 / 19.0 | 28 / 92 |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated load shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

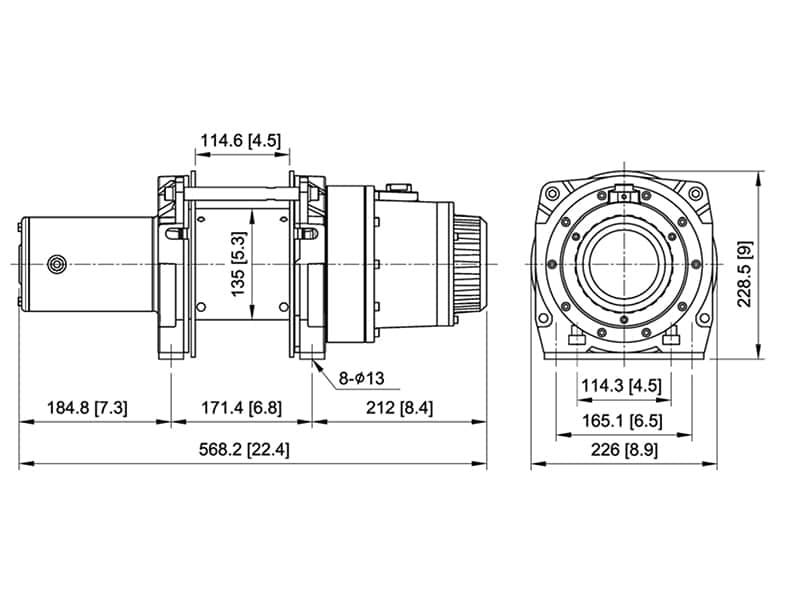

外形尺寸
