GTD-650
电动绞盘 · GTD-650
295 kg Heavy Duty Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 650 lbs（295 kgf）
- Provides an answer to the health and safety recommendations for manual lifting
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation..
- Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 750265 (12V) / PN 750280 (24V) / PN 750300 (48V) PN 750160 (12V) w / o controls and rope assembly PN 750188 (24V) w / o controls and rope assembly |
| Rated line lift | 295 kg / 650 lb |
| Line speed (at 1st layer of rope) | 12V : 6.1 mpm / 20.0 fpm 20A at no load 4.4 mpm / 14.4 fpm 55A at full load 24V : 7.0 mpm / 23.0 fpm 15A at no load 5.3 mpm / 17.4 fpm 30A at full load 48V : 4.8 mpm / 15.7 fpm 6A at no load 4.6 mpm / 15.1 fpm 15A at full load |
| Motor | 800 w / 1.0 hp 12/24V/48V, permanent magnet |
| Gear ratio | 3-stage planetary gear 138.5:1 |
| Brake | Mechanical spring applied and permanent motor dynamic brakes together |
| Hoist construction | Aluminum die housings and drum |
| Drum size | 61.2 x 105 x 75 L mm ( 2.4 “ x 4.13 ” x 3.0 “ L ) |
| Control | Remote control with 5 m (17') lead |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 3.6 mm x 18.3 m (9/64" x 60') |
| Mounting bolt pattern | 124 x 76 mm (4.9” x 3”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU -ASME B30.5 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, | Line Speed, mpm / fpm | Amp Draw, A | Percentage Duty Cycle, Min / 10 min | ||||||
|---|---|---|---|---|---|---|---|---|---|
| kg / lb | 12V | 24V | 24V | 12V | 24V | 48V | 12V | 24V | 48V |
| No load | 6.1 / 20.0 | 7.0 / 23.0 | 4.8 / 15.7 | 20 | 15 | 6 | con | con | con |
| 147 / 320 | 5.0 / 16.4 | 6.0 / 19.7 | 4.7 / 15.4 | 40 | 22 | 10 | 5.0 | 4.0 | 5.0 |
| 295 / 650 | 4.4 / 14.4 | 5.3 / 17.4 | 4.6 / 15.1 | 55 | 30 | 15 | 3.5 | 3.0 | 3.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope | Load by Layer,kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft | ||
|---|---|---|---|---|---|
| 12V | 24V | 48V | |||
| 1st | 295 / 650 | 4.4 / 14.4 | 5.3 / 17.4 | 4.6 / 15.1 | 4.1 / 13.5 |
| 2nd | 266 / 586 | 4.9 / 16 | 5.9 / 19.4 | 5.1 / 16.7 | 8.7 / 28.5 |
| 3rd | 241 / 531 | 5.4 / 17.7 | 6.5 / 21.3 | 5.7 / 18.7 | 13.8 / 45.3 |
| 4h | 221 / 487 | 5.9 / 19.4 | 7.1 / 23.3 | 6.2 / 20.0 | 18.3 / 60.0 |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated load shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

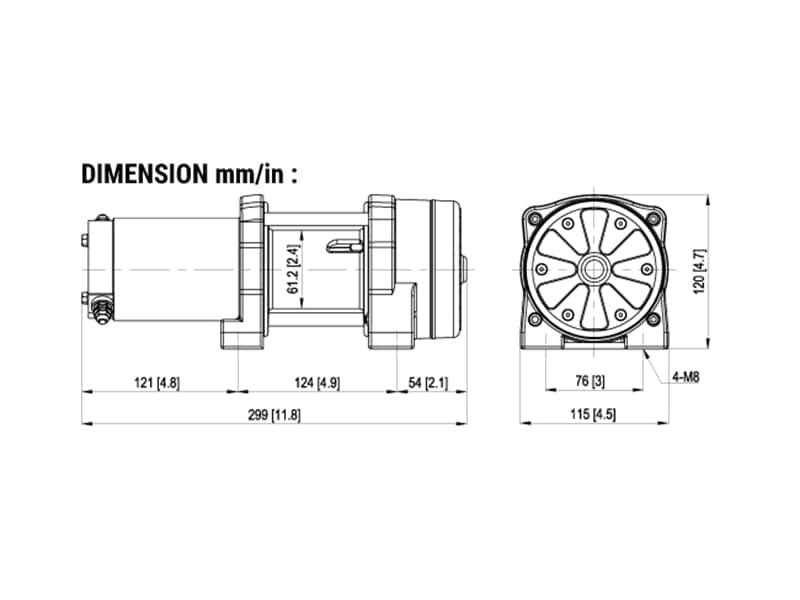

外形尺寸
