GTD-800
电动绞盘 · GTD-800
362 kg Heavy Duty Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 800 lbs（363 kgf）
- Provides an answer to the health and safety recommendations for manual lifting
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation.
- Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 750925 (12V) / PN 750955 (24V) / PN 751000 (48V) PN 750888 (12V) w / o controls and rope assembly PN 750898 (24V) w / o controls and rope assembly |
| Rated line lift | 362 kg / 800 lb |
| Line speed (at 1st layer of rope) | 12V : 5.0 mpm / 16.4 fpm 30A at no load 3.6 mpm / 11.8 fpm 55A at full load 24V : 5.5 mpm / 18.0 fpm 15A at no load 4.0 mpm / 13.1 fpm 35A at full load 48V : 4.0 mpm / 13.1 fpm 5A at no load 3.8 mpm / 12.5 fpm 15A at full load |
| Motor | 800 w / 1.0 hp 12V/24V/48V permanent magnet |
| Gear ratio | 3-stage planetary gear 191:1 |
| Brake | Mechanical spring applied and permanent motor dynamic brakes together |
| Hoist construction | Aluminum die housings and drum |
| Drum size | 68 x 105 x 119L mm (2.7” x 4.1" x 4.7" L) |
| Control | Remote control with 5 m (17') lead |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 4.0 mm x 18.3 m (5/32" x 60') |
| Mounting bolts pattern | 168 x 76 mm (6.6” x 3”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU - ASME B30.5 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, | Line Speed, mpm / fpm | Amp Draw, A | Percentage Duty Cycle, Min / 10 min | ||||||
|---|---|---|---|---|---|---|---|---|---|
| kg / lb | 12V | 24V | 48V | 12V | 24V | 48V | 12V | 24V | 48V |
| No load | 5.0 / 16.4 | 5.5 / 18.0 | 4.0 / 13.1 | 30 | 15 | 5 | con | con | con |
| 181 / 400 | 4.1 / 13.4 | 4.5 / 14.8 | 3.9 / 12.8 | 40 | 25 | 8 | 6.0 | 4.0 | 5.0 |
| 362 / 800 | 3.6 / 11.8 | 4.0 / 13.1 | 3.8 / 12.5 | 55 | 35 | 15 | 4.0 | 2.5 | 3.5 |
Line Pull and Rope Capacity:
| Layer of Wire Rope | Load by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft | ||
|---|---|---|---|---|---|
| 12V | 24V | 48V | |||
| 1st | 362 / 800 | 3.6 / 11.8 | 4.0 / 13.1 | 3.8 / 12.5 | 6.6 / 21.7 |
| 2nd | 327 / 721 | 4.0 / 13.1 | 4.5 / 14.8 | 4.2 / 13.8 | 14.0 / 45.9 |
| 3rd | 297 / 655 | 4.4 / 14.4 | 4.9 / 16.1 | 4.6 / 15.1 | 18.3 / 60.0 |
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated load shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

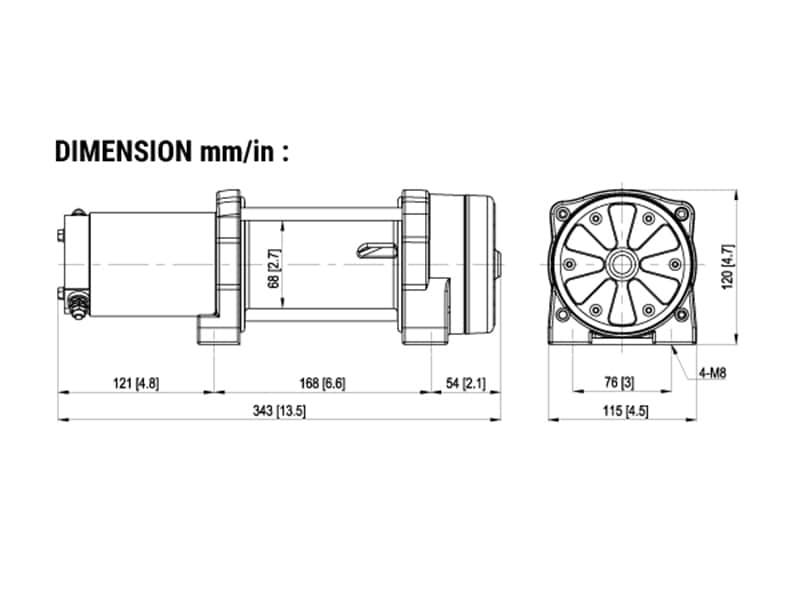

外形尺寸
