Rhino 12 Pro
电动绞盘 · Rhino 12 Pro
5.1 Tonnes Electric Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Reliable electric winch for commercial, industrial and severe duty applications
- 4,180w/12V or 2,690w/24V series wound motor.
- 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
- Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
- LED Indicator displays detailed winch status while operating.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Easy to turn the T-handle for rapid wire rope payout.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards What's News Link: KAIZEN: Rhino Pro Series Electric Recovery Winches
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 851105 (12V) / PN 851324 (24V) |
| Rated line pull | 5,440 kg / 12,000 lb (SAE J706 rating) 5,100 kg (EN 14492-1 rating) |
| Motor | 4,180 w / 5.6 hp 12V series wound 2,690 w / 3.6 hp 24V series wound |
| Gear train | 3-stage planetary 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 114 x 195.5 mm (4.5” x 7.7") |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Mounting bolt pattern | 254 x 114.3 mm (10” x 4.5”) 254 x 165.1 mm (10" x 6.5") |
| Wire rope recommended | 12 mm x 21.4 m, 1,960 N/mm2 grade with a minimum breaking strength of 100.5 kN required for EN 14492-1 rating. 1/2" x 100', EIPS grade with a minimum breaking strength of 22,552 lbf required for SAE J706 rating |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | |
|---|---|---|---|
| 12V | 24V | ||
| No load | 10 / 32.8 | 40 | 35 |
| 1,814 / 4,000 | 4.4 / 14.4 | 140 | 110 |
| 3,629 / 8,000 | 3.5 / 11.5 | 280 | 210 |
| 4,536 / 10,000 | 1.5 / 5.0 | 350 | 260 |
| 5,440 / 12,000 | 1.3 / 4.3 | 420 | 310 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 5,440 / 12,000 | 1.3 / 4.3 | 5.9 / 19.4 |
| 2nd | 4,534 / 9,996 | 1.5 / 12.1 | 13 / 42.7 |
| 3rd | 3,885 / 8,565 | 1.8 / 14.3 | 21.4 / 70.2 |
| 4th | 3,399 / 7,494 | 2.0 / 16.4 | 30.5 / 100 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

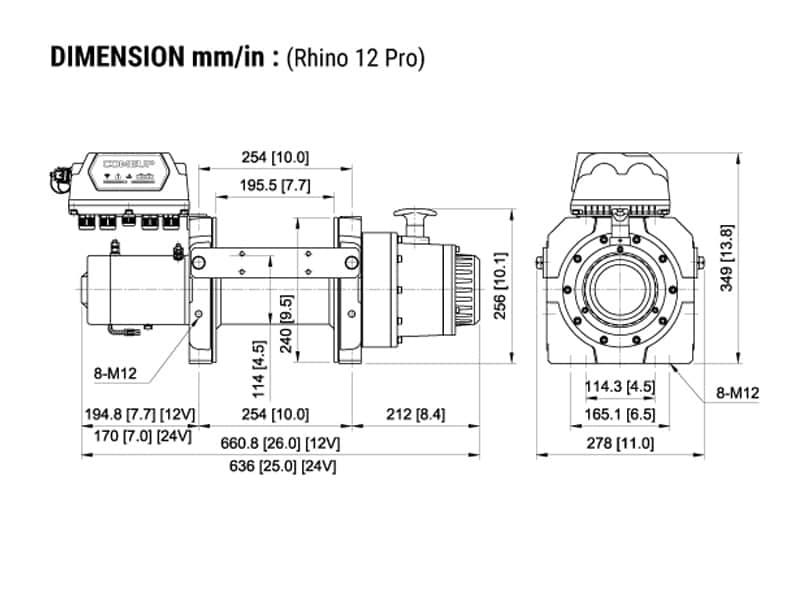

外形尺寸
