Rhino 15
电动绞盘 · Rhino 15
6.8 Tonnes Electric Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 15,000 lbs（6,804 kgf）
- Reliable electric winch for commercial, industrial and severe duty applications
- 5,250w/24V series wound motor.
- 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation
- Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Easy to turn the T-handle for rapid wire rope payout.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 851540 (24V) |
| Rated line pull | 6,804 kg / 15,000 lb single line (EN 14492-1 rating) |
| Motor | 5,250 w / 7.0 hp 24V series wound |
| Gear train | 3-stage planetary 315:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 133 x 195.5 mm ( 5.2” x 7.7” ) |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Mounting bolt pattern | 254 x 114.3 mm (10” x 4.5”) 254 x 165.1 mm (10" x 6.5") |
| Wire rope recommended | 14 mm x 22 m, 1,960N/mm2 grade with a minimum breaking strength of 137 KN required for EN 14492-1 rating |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 24V | ||
| No load | 12.6 / 41.3 | 35 |
| 1,814 / 4,000 | 5.1 / 16.7 | 80 |
| 3,630 / 8,000 | 4.1 / 13.5 | 160 |
| 4,536 / 10,000 | 3.1 / 10.2 | 200 |
| 5,443 / 12,000 | 2.5 / 8.2 | 250 |
| 6,804 / 15,000 | 1.9 / 6.2 | 300 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 6,804 / 15,000 | 1.9 / 6.2 | 6.2 / 20.3 |
| 2nd | 5,715 / 12,599 | 2.3 / 7.5 | 13.6 / 44.6 |
| 3rd | 4,927 / 10,862 | 2.6 / 8.5 | 22 / 72 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

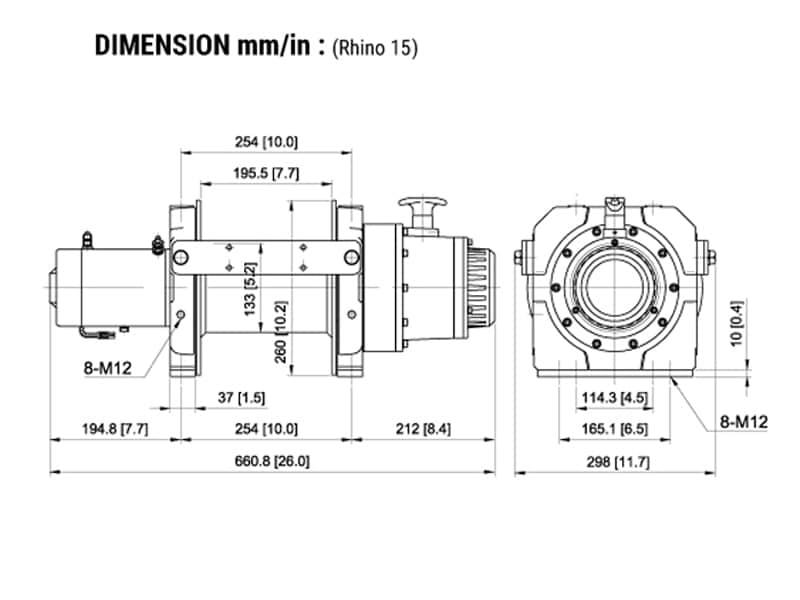

外形尺寸
