Rhino 8 Pro
电动绞盘 · Rhino 8 Pro
3.5 Tonnes Electric Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 8,000 lbs（3,629 kgf）
- Reliable electric winch for commercial, industrial and severe duty applications
- 3,430w/12V or 1,940w/24V series wound motor.
- Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
- LED Indicator displays detailed winch status while operating.
- Low voltage detecting function reminds operator vehicle battery status.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- Meets SAE J706, CE Machinery Directive 2006/42/EC, and EN 14492-1 standards What's News Link:KAIZEN: Rhino Pro Series Electric Recovery Winches
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 850318 (12V) / PN 850326 (24V) |
| Rated line pull | 3,630 kg / 8,000 lb single line (SAE J706 rating) 3,560 kg (EN 14492-1 rating) |
| Motor | 3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound |
| Gear train | 3-stage planetary 211:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 90 x 205 mm (3.5” x 8.1") |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Mounting bolt pattern | 254 x 114 mm (10” x 4.5”) 254 x 165 mm (10" x 6.5") |
| Wire rope recommended | 10 mm x 22.6 m, 1,960 N/mm2 grade with a minimum breaking strength of 69.8 kN required for EN 14492-1 rating. 3/8" x 100', EIPS grade with a minimum breaking strength of 15,663 lbf required for SAE J706 rating |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | |
|---|---|---|---|
| 12V | 24V | ||
| No load | 9.0 / 29.5 | 45 | 40 |
| 907 / 2,000 | 3.0 / 10 | 90 | 60 |
| 1,814 / 4,000 | 1.5 / 5.0 | 180 | 120 |
| 2,722 / 6,000 | 1.0 / 3.3 | 260 | 180 |
| 3,630 / 8,000 | 0.7 / 2.3 | 340 | 230 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 3,630 / 8,000 | 0.7 / 2.3 | 6.3 / 20.7 |
| 2nd | 3,025 / 6,669 | 0.9 / 3.0 | 13.8 / 45.3 |
| 3rd | 2,593 / 5,717 | 1.0 / 3.3 | 22.6 / 74.1 |
| 4th | 2,269 / 5,002 | 1.2 / 4.0 | 30.5 / 100 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

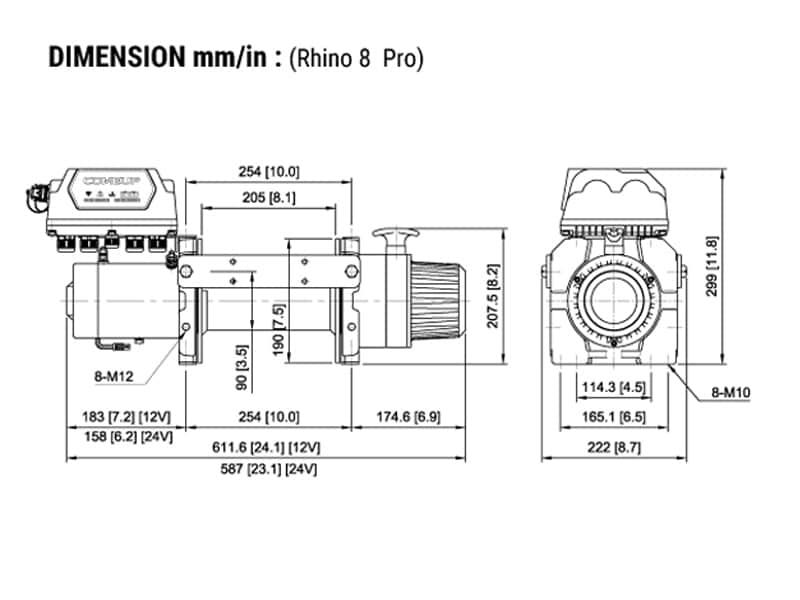

外形尺寸
