Seal 16.5rs Trail Edition
电动绞盘 · Seal 16.5rs Trail Edition
Trail Edition: Includes a BossHook L and a 250A fuse kit
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 16,500 lbs（7,484 kgf）
- 12/24V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
- 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- Cutout switch prevents the vehicle battery from draining when no use.
- Both built-in digital two way signal wireless remote control and wired water-proof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
- BossHook L made of strong SCM440 alloy steel, MBS18,200 KG.
- The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
- Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 298115 (12V) / PN 298126 (24V) |
| Rated line pull | 7,484 kg / 16,500 lb single line |
| Line speed ( 1st layer) | 5.6 mpm / 18.4 fpm 50A at 12V, 7.6 mpm / 24.7 fpm 25A at 24V no load 1.4 mpm / 4.6 fpm 355A at 12V, 1.4 mpm / 4.6 fpm 245A at 24V full load |
| Motor | 4,325 w / 5.8 hp 12V series wound 4,474 w / 6.0 hp 24V series wound |
| Gear train | 3-stage planetary 343:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 89 mm x 204L mm (3.5" x 8"L) |
| Control | Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 12.7 mm x 25 m (1/2” x 82’) |
| Mounting bolt pattern | 254 mm x 114.3 mm (10” x 4.5”) 254 mm x 165 mm (10" x 6.5") |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 12V | 24V | |
| No load | 5.6 / 18.4 | 7.6 / 24.9 | 50 | 25 |
| 1,814 / 4,000 | 3.0 / 9.8 | 3.1 / 10.3 | 90 | 90 |
| 3,629 / 8,000 | 2.5 / 8.2 | 1.9 / 6.4 | 180 | 150 |
| 4,536 / 10,000 | 1.9 / 6.2 | 1.6 / 5.2 | 230 | 200 |
| 7,484 / 16,500 | 1.4 / 4.6 | 1.4 / 4.6 | 355 | 245 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 7,484 / 16,500 | 5.2 / 17.1 |
| 2nd | 6,125 / 13,503 | 11.6 / 38.1 |
| 3rd | 5,184 / 11,429 | 19.2 / 63.0 |
| 4rd | 4,494 / 9,908 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

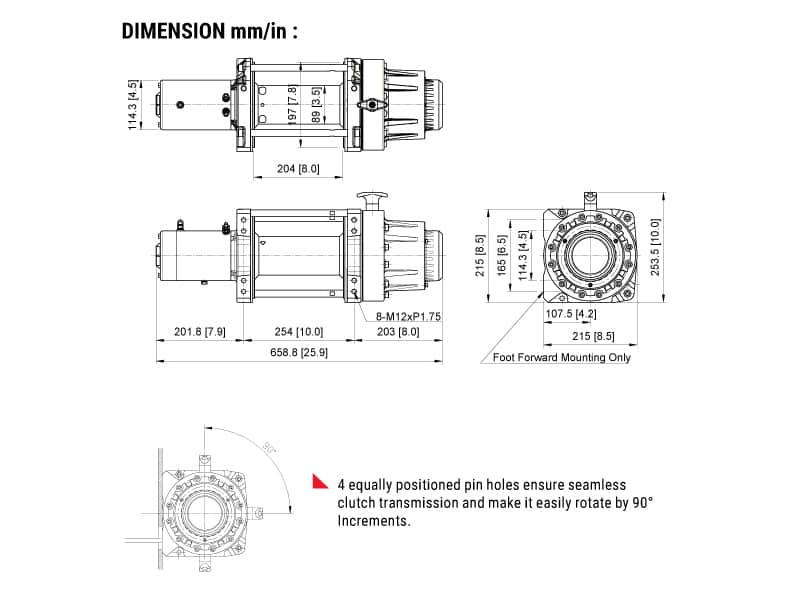

外形尺寸
