Seal 16.5rsi Trail Edition
电动绞盘 · Seal 16.5rsi Trail Edition
Trail Edition: Includes a BossHook L and a 200A fuse kit
牵引绞盘
- 额定拉力
- 16,500 lbs（7,484 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
产品详情
Compact Strength Low Profile integrated winch - 7.5 Tonnes Severe Duty Winch
Introducing the COMEUP Seal 16.5rsi Trail Edition, the ultimate winching solution designed for unparalleled ease of installation and equipped with exclusive Trail Edition features for enhanced functionality.
Firstly, as a control box integrated winch, the Seal 16.5rsi sets a new standard for simplicity in installation. By integrating the control box directly into the winch design, installation becomes a breeze, streamlining the setup process and saving you valuable time and effort.
Secondly, the Seal 16.5rsi proudly bears the distinction of being the Trail Edition, which includes our innovative BossHook L and a specialized winch fuse kit. The BossHook L revolutionizes recovery operations with its advanced design, providing superior attachment points for secure and efficient winching. Additionally, the inclusion of the winch fuse kit ensures optimal performance and protection for your winch system, enhancing reliability and peace of mind on the trail.
With its robust construction, powerful performance, and exclusive Trail Edition features, the COMEUP Seal 16.5rsi stands out as the ultimate winch choice for Overland full-size pickup trucks. Engineered to meet the demanding needs of off-road enthusiasts, this winch offers unparalleled convenience, functionality, and reliability specifically tailored for full-size trucks navigating challenging terrains. Enjoy peace of mind on your solo expeditions, knowing that the Seal 16.5rsi is there to provide reliable assistance whenever you need it most, making it the best winch companion for your Overland adventures.
规格表
| Specification | Value |
|---|---|
| Part number | PN 298341 (12V) |
| Rated line pull | 7,484 kg / 16,500 lb single line |
| Line speed ( 1st layer) | 5.6 mpm / 18.4 fpm 50A at 12V no load 1.4 mpm / 4.6 fpm 355A at 12V full load |
| Motor | 4,325 w / 5.8 hp 12V series wound |
| Gear train | 3-stage planetary 343:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 89 mm x 204L mm (3.5" x 8"L) |
| Control | Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 12.7 mm x 25 m (1/2” x 82’) |
| Mounting bolt pattern | 254 mm x 114.3 mm (10” x 4.5”) 254 mm x 165 mm (10" x 6.5") |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | |
|---|---|---|
| Amp. Draw, A | ||
| No load | 5.6 / 18.4 | 50 |
| 1,814 / 4,000 | 3.0 / 9.8 | 90 |
| 3,629 / 8,000 | 2.5 / 8.2 | 180 |
| 4,536 / 10,000 | 1.9 / 6.2 | 230 |
| 7,484 / 16,500 | 1.4 / 4.6 | 355 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 7,484 / 16,500 | 5.2 / 17.1 |
| 2nd | 6,125 / 13,503 | 11.6 / 38.1 |
| 3rd | 5,184 / 11,429 | 19.2 / 63.0 |
| 4rd | 4,494 / 9,908 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

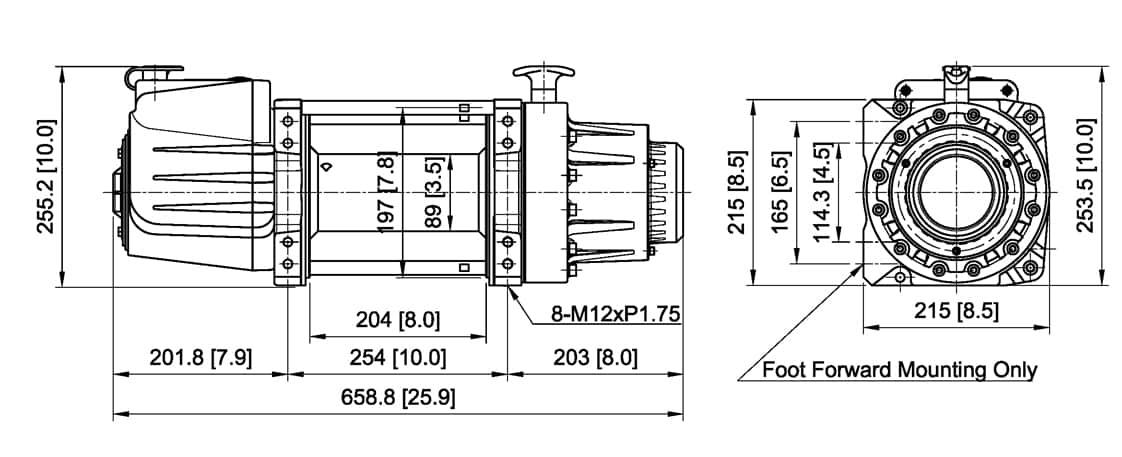

外形尺寸
