COMEUP
Seal Gen2 20.0
电动绞盘 · Seal Gen2 20.0
9.1 Tonnes Severe Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
- 12V DC severe duty winch rated at 20,000 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 4 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 90 degree Increments.
- Water-proof remote control with thermometric LED indicator w/5 m cord
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part Number | PN 295205 (12V) |
| Rated line pull | 9,072 kg ( 20,000 lb ) single line |
| Line speed ( 1st layer) | 4.5 mpm / 14.8 fpm 60A at 12V, no load 0.4 mpm / 1.3 fpm 410A at 12V, full load |
| Motor | 5,220 w / 7.0 hp 12V series wound |
| Gear train | 3-stage planetary 343:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load cone brake |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 89 x 204 mm (3.5” x 8”) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Wire rope | 6 × 29 - IWRC |
| Size | 12.7 mm x 18 m (1/2” x 59’) |
| Mounting bolts pattern | 254 x 114.3 mm (10” x 4.5”) 254 x 165 mm (10” x 6.5”) |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 4.5 / 14.8 | 60 |
| 1,814 / 4,000 | 2.1 / 6.9 | 150 |
| 3,629 / 8,000 | 1.8 / 5.9 | 190 |
| 4,536 / 10,000 | 1.4 / 4.6 | 260 |
| 7,484 / 16,500 | 1.1 / 3.6 | 340 |
| 9,072 / 20,000 | 0.4 / 1.3 | 410 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 9,072 / 20,000 | 5.0 / 16.4 |
| 2nd | 7,259 / 16,003 | 11.2 / 36.7 |
| 3rd | 6,050 / 13,338 | 18.0 / 59.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) years warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

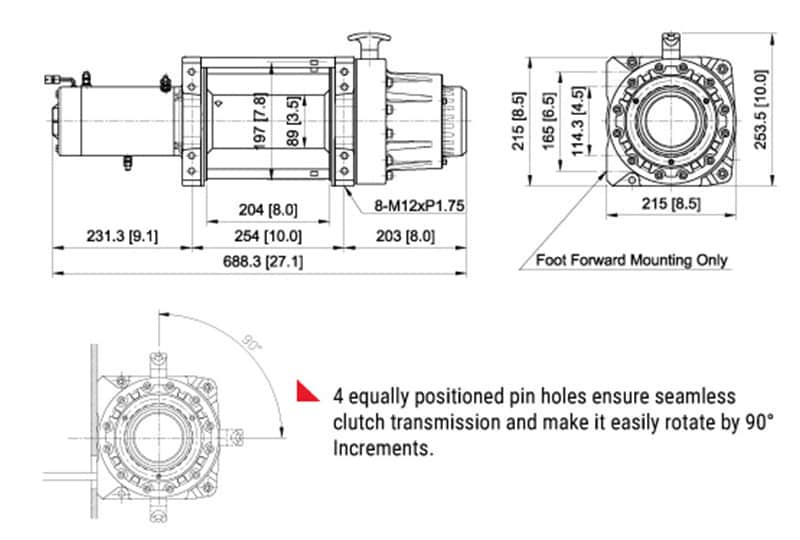

外形尺寸
