Slim 9.5
电动绞盘 · Slim 9.5
4.3 Tonnes Severe Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
- 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degreeIncrements.
- Water-proof remote control with thermometric LED indicator w/5 m cord.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
- Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 295020 |
| Rated line pull | 4,309 kg / 9,500 lb single line |
| Line speed ( 1st layer) | 14.5 mpm / 47.6 fpm 60 A at 12V no load 2.1 mpm / 6.8 fpm 380 A at 12V full load |
| Motor | 3,730 w / 5.0 hp 12V series wound |
| Gear ratio | 3-stage planetary 159:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 227L mm (2.5” x 8.9”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 wire rope |
| Rope size | 8.7 mm x 30.5 m (11/32” x 100’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward or foot down mounting workable |
| Finish | Matte black powder-coated |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 14.5 / 47.6 | 60 |
| 907 / 2,000 | 4.7 / 15.2 | 115 |
| 1,814 / 4,000 | 3.5 / 11.5 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.1 / 6.8 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 4,309 / 9,500 | 5.8 / 19.1 |
| 2nd | 3,472 / 7,655 | 13.1 / 42.9 |
| 3rd | 2,908 / 6,410 | 21.7 / 71.2 |
| 4th | 2,501 / 5,514 | 30.5 / 100 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of wire rope on the drum.
- The wire rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three(3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

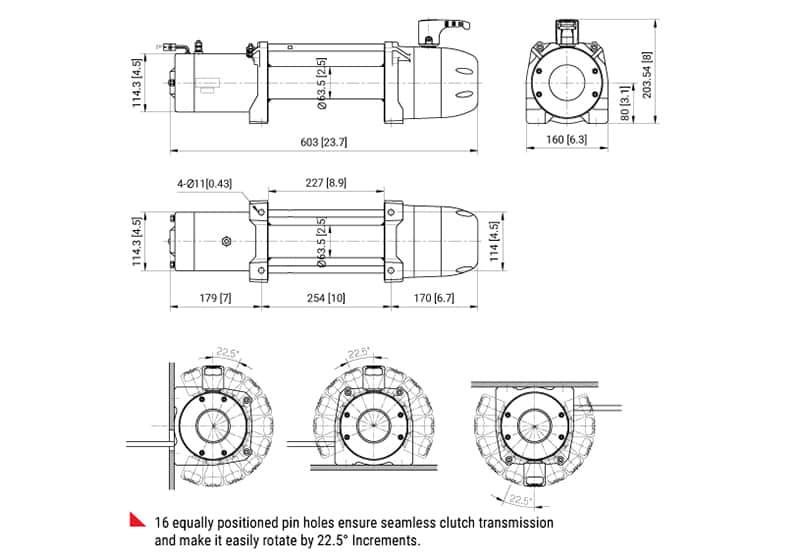

外形尺寸
