Slim 9.5s
电动绞盘 · Slim 9.5s
4.3 Tonnes Severe Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,500 lbs（4,309 kgf）
- 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

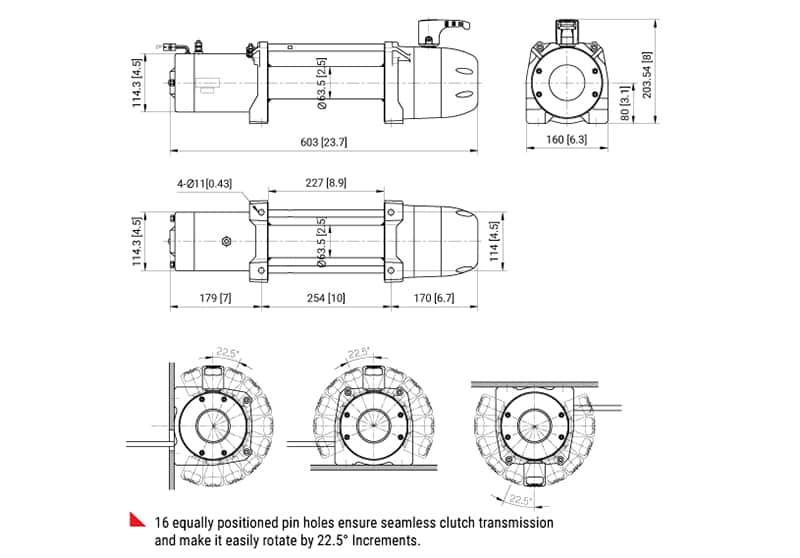

- 16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degreeIncrements.
- Water-proof remote control with thermometric LED indicator w/5 m cord
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
- Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 295014 (12V) |
| Rated line pull | 4,309 kg / 9,500 lb single line |
| Line speed ( 1st layer) | 14.8 mpm / 48.6 fpm 60 A at 12V no load 2.2 mpm / 7.2 fpm 380 A at 12V full load |
| Motor | 3,730 w / 5.0 hp 12V series wound |
| Gear ratio | 3-stage planetary 159:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 63.5 mm x 227L mm (2.5” x 8.9”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | Synthetic rope |
| Rope size | 10 mm x 23.2 m (3/8” x 76’) |
| Mounting bolt pattern | 254 mm x 114 mm (10” x 4.5”) |
| Mounting | Foot forward or foot down mounting workable |
| Finish | Matte black powder-coated |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 14.8 / 48.6 | 60 |
| 907 / 2,000 | 4.8 / 15.7 | 115 |
| 1,814 / 4,000 | 3.6 / 11.8 | 210 |
| 2,722 / 6,000 | 2.8 / 9.2 | 245 |
| 3,629 / 8,000 | 2.3 / 7.6 | 280 |
| 4,309 / 9,500 | 2.2 / 7.2 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 4,309 / 9,500 | 5.1 / 16.7 |
| 2nd | 3,472 / 7,655 | 11.7 / 38.4 |
| 3rd | 2,908 / 6,410 | 19.7 / 64.6 |
| 4th | 2,501 / 5,514 | 23.2 / 76.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of synthetic rope on the drum.
- The synthetic rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.
