COMEUP

SOLO 9.5rs Trail Edition

电动绞盘 · SOLO 9.5rs Trail Edition

4.3 Tonnes Self-Recovery Winch

适用场景与工作类型

牵引绞盘

额定拉力: 9,500 lbs（4,309 kgf）

12V DC severe duty winch rated at 9,500 lbpulling meets and exceeds your expectations.
Heavy duty series wound motor equipped with thermal protection switch alters.
Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.
Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.
Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
Newly designed wireless and wired controllers offer better holding and reliable operation. Wired controller has magnet design, allowing it to put on idle vehicle body.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.
Built-in radio control module includes functions: - On/Off switch prevents the vehicle battery from draining when no use - Motor over-heating warning by LED indicators and beeper

🛒 去Mywinch购买咨询技术支持

← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台

产品详情

Introducing the COMEUP SOLO 9.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection. Built for reliability and durability, the Trail Edition empowers you to conquer mud, snow, and rocky terrain with unstoppable confidence.

规格表

Specification	Value
Part number	PN 291663 (12V)
Rated line pull	4,309 kg / 9,500 lb single line
Line speed (1st layer)	14.8 mpm / 48.6 fpm 60 A at 12V no load 2.2 mpm / 7.2 fpm 380 A at 12V full load
Motor	3,730 w / 5.0 hp 12V series wound
Gear ratio	3-stage planetary 159:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Includes both built-in digital two-way wireless control and waterproof wired remote control with LED thermometric indicator and 5m (17') cord
Rope type	Synthetic rope
Rope size	10 mm x 23.2 m (3/8” x 76’)
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

性能数据

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, kg / lb	Line Speed, mpm / fpm	Amp. Draw, A
12V
No load	14.8 / 48.6	60
907 / 2,000	4.8 / 15.7	115
1,814 / 4,000	3.6 / 11.8	210
2,722 / 6,000	2.8 / 9.2	245
3,629 / 8,000	2.3 / 7.6	280
4,309 / 9,500	2.2 / 7.2	380

Line Pull and Rope Capacity:

Layer of Rope	Pull by layer, kg / lb	Total Rope on the Drum, m / ft
1st	4,309 / 9,500	5.1 / 16.7
2nd	3,472 / 7,655	11.7 / 38.4
3rd	2,908 / 6,410	19.7 / 64.6
4th	2,501 / 5,514	23.2 / 76.0

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of synthetic rope on the drum.
The synthetic rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and three ( 3 ) years warranty for electrical components from date of purchase. Synthetic ropes are not included under warranty.

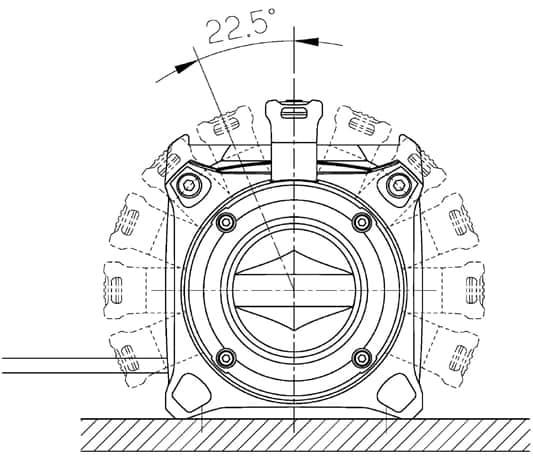

外形尺寸
