COMEUP
UTE-6000rs
电动绞盘 · UTE-6000rs
6,000 lb Utility Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 6,000 lbs（2,722 kgf）
- Compact and light weight allows a wide range of application. For example: crane hoist, gear motor, lifting winch, boat trailer winch, equipment lift, lifter, rack lift, cargo lift.
- High torque permanent magnet motor delivers heavy line pull at lower amp and slip free dynamic brake.
- Compound gear wheel gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
- Sliding pin and ring gear clutch for rapid free spool.
- Double mechanical ratchets brake and motor dynamic brake ensure holding the load without slippage.
- Manual override in case power is lost
- 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
- Built-in digital signal two way wireless remote control and waterproof remote control w/5 m (17’) cord.
- Intelligence Dashboard (IDB) functions: - On/Off switch prevents the vehicle battery from draining when not in use. - With LED fan-shaped battery life indicator. - Wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 646010 (12V) |
| Rated line pull | 2,722 kg / 6,000 lb single line |
| Line speed (1st layer) | 3.5 mpm / 11.5 fpm 25A / 12 V at no load 1.3 mpm / 4.3 fpm 180A / 12V at full load |
| Motor | 800 w / 1.0 hp, 12V permanent magnet |
| Gear ratio | Compound gear 228.7 : 1 |
| Clutch (free spooling) | Turn the handle for rapid wire rope payout |
| Brake | Double mechanical ratchet brake and motor dynamic brake |
| Drum size | 54 x 83 L mm (2.1” x 3.3”) |
| Control | Waterproof remote w/ 5 m (17') cord Wireless remote control |
| Rope type | Synthetic rope |
| Rope size | 7.1 mm x 10.1 m (9/32” x 33’) |
| Mounting bolt pattern | 72 mm x 93 mm (2.8" x 3.7") |
| Standard Compliance | - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 3.5 / 11.5 | 25 |
| 454 / 1,000 | 3.4 / 9.2 | 35 |
| 907 / 2,000 | 2.8 / 8.5 | 50 |
| 1,361 / 3,000 | 2.3 / 7.6 | 75 |
| 1,814 / 4,000 | 1.9 / 6.2 | 100 |
| 2,268 / 5,000 | 1.5 / 4.9 | 135 |
| 2,722 / 6,000 | 1.3 / 4.3 | 180 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 2,722 / 6,000 | 1.9 / 6.2 |
| 2nd | 2,209 / 4,870 | 4.3 / 14.1 |
| 3rd | 1,858 / 4,096 | 7.1 / 23.3 |
| 4th | 1,603 / 3,534 | 10.1 / 33.1 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and three (3) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

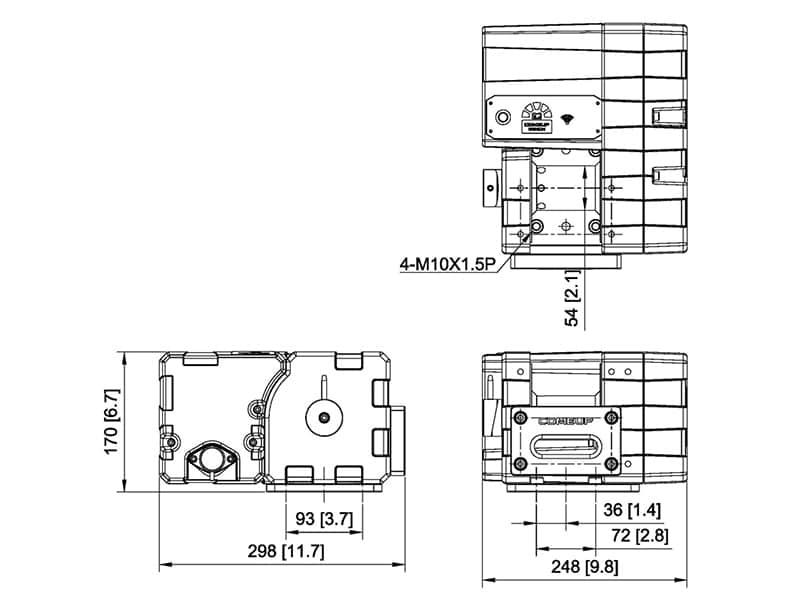

外形尺寸
