Utility Winch 5000si
电动绞盘 · Utility Winch 5000si
5,000 lb Utility Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 5,000 lbs（2,268 kgf）
- Compact and light weight allows a wide range of application on trailers and boats.
- High torque permanent magnet motor enables high line pull at lower amp and slip free dynamic brake.
- 3-stage planetary gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
- Sliding pin and ring gear clutch for rapid rope payout.
- Automatic load-holding mechanical brake plus motor dynamic brake ensure holding the load without slippage.
- With circuit breakers to prevent motor overheating.
- Both built-in digital signal two way wireless remote control and on board rocker switch (IN/OUT) control.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 645010 |
| Rated line pull | 2,268 kg ( 5,000 lb ) single line |
| Motor | 1,300 w / 1.7 hp, 12V permanent magnet |
| Gear train / ratio | 3-stage planetary 170:1 |
| Clutch (freespooling) | Sliding ramping |
| Brake | Mechanical spring applied brake plus permanent magnet motor dynamic brakes |
| Drum size | 54 mm x 83L mm (2.1” x 3.3”L) |
| Control | Wireless remote control and on board rocker switch control |
| Synthetic rope size | 6.3 mm x 15.2 m (1/4” x 50’ ) |
| Mounting bolt pattern | 72 mm x 93 mm (2.8” x 3.7”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 12V | ||
| No load | 5.5 / 18.0 | 25 |
| 454 / 1,000 | 5 / 16.4 | 75 |
| 907 / 2,000 | 3.6 / 11.8 | 140 |
| 1,361 / 3,000 | 2.5 / 8.2 | 210 |
| 1,814 / 4,000 | 1.4 / 4.6 | 310 |
| 2,268 / 5,000 | 1.0 / 3.3 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 2,268 / 5,000 | 2.4 / 7.9 |
| 2nd | 1,876 / 4,136 | 5.3 / 17.4 |
| 3rd | 1,600 / 3,527 | 8.7 / 28.6 |
| 4th | 1,394 / 3,073 | 12.6 / 41.4 |
| 5th | 1,235 / 2,722 | 15.2 / 50 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 10 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

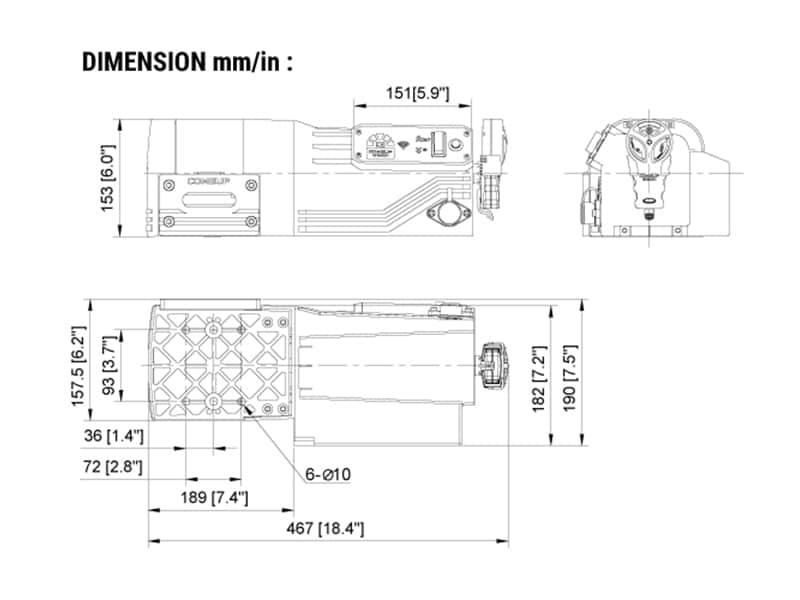

外形尺寸
