COMEUP
Walrus 22.0
电动绞盘 · Walrus 22.0
10.0 Tonnes Severe Duty Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 22,000 lbs（9,979 kgf）
- 24V DC severe duty winch rated at 22.000 lb pulling meets or exceeds your expectations
- Waterproof and dustproof construction; - Potted contactor and motor provide complete protection from water penetration and allow dependable operation in up to 1.8 meter of water. - Rubber seals at motor and gear housing joints for independent water protection - Double lip and spring seal at drum support racks - Industrial duty remote control with twist-on connector to provide total protection from water.
- Water-proof remote control with thermometric LED indicator alerts when receiving a warning signal from the motor over-heated.
- Tough aluminum die cast housings withstand strength of 2 times winch line pull at least.
- U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slippage.
- Corrosion resistance 720hr
- Meets international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part Number | PN 282210 (24V) |
| Rated line pull | 9,980 kg / 22,000 lb (single line) |
| Line speed ( 1st layer) | 9.0 mpm / 29.5 fpm 30 A at 24V no load 1.4 mpm / 4.6 fpm 330 A at 24V full load |
| Motor | 5,220 w / 7.0 hp 24V series wound |
| Gear train | 3-stage planetary 343:1 |
| Clutch (freespooling) | Rotating ring gear |
| Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch construction | Aluminum die cast housings with steel drum |
| Drum size | 102 mm x 254L mm (4” x 10”L) |
| Control | Waterproof remote with thermometric indicator LED w/ 5 m (17') cord |
| Rope type | 6 × 29 - IWRC. (Breaking strength 117.6 kN) |
| Rope size | 12.7 mm x 25 m (1/2” x 82’) |
| Mounting bolt pattern | 304 mm x 114.3 mm (12” x 4.5”) 304 mm x 165 mm (12" x 6.5") |
| Mounting | Foot forward mounting only * Remark: Only foot forward mounting can meet SAE J706 |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A |
|---|---|---|
| 24V | ||
| No load | 9.0 / 29.5 | 30 |
| 2,268 / 5,000 | 3.2 / 10.5 | 100 |
| 4,536 / 10,000 | 2.5 / 8.2 | 160 |
| 6,804 / 15,000 | 2.0 / 6.6 | 240 |
| 9,980 / 22,000 | 1.4 / 4.6 | 330 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 9,980 / 22,000 | 7.0 / 23.0 |
| 2nd | 8,171 / 18,014 | 15.5 / 50.9 |
| 3rd | 6,917 / 15,249 | 25.0 / 82.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

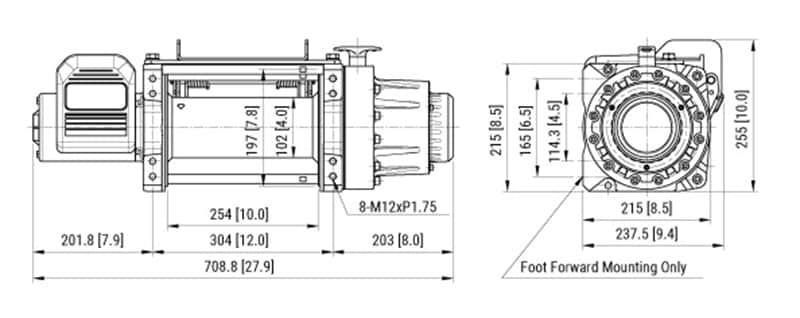

外形尺寸
