Wolf 12.0
电动绞盘 · Wolf 12.0
12,000 lb Electric Worm Gear Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Robust, extreme heavy duty worm drive
- Heavy duty series wound motor for high torque output and fast line speed under extreme operating condition.
- Detachable weather-resistant control box mounted elsewhere on the vehicle.
- 2 stages spur gears plus 1 exceptionally strong worm gear for reversing protection.
- Irreversible worm gear brake as well as an auxiliary mechanism ratchet wheel brake performs instant braking and free slip.
- Mechanism lever clutch for rapid wire rope payout.
- Heavy duty sealed contactor gives better water resistance and lower amp. draw.
- Higher D/d ratio (Drum dia./rope dia.) allows light commercial applications of car transporter, wrecker, tractor, lorry and fire/rescue engine.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and REMSA Standards.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 782478 (12V) / PN 783415 (24V) |
| Rated line pull | 5,443 kg / 12,000 lb |
| Motor | 3,430 w / 4.6 hp 12V series wound 2,240 w / 3.0 hp 24V series wound |
| Gear train | 2-stage spur gear PLUS worm gear 424:1 |
| Clutch (freespooling) | Mechanism lever |
| Brake | Irreversible worm gear brake PLUS mechanism ratchets wheel brake |
| Drum size | 89 x 229 mm (3.5” x 9") |
| Control | Waterproof remote control w/5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 9.5 mm x 30.5 m (3/8" x 100') |
| Mounting bolt pattern | 273 x 110 mm (10.7” x 4.3”) 257 x 172 mm (10.1" x 6.8") |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 12V | 24V | |
| No load | 3.5 / 10.1 | 5.0 / 16.4 | 70 | 50 |
| 2,722 / 6,000 | 1.1 / 3.6 | 1.8 / 5.9 | 180 | 150 |
| 3,630 / 8,000 | 0.8 / 2.6 | 1.3 / 4.3 | 270 | 190 |
| 4,535 / 10,000 | 0.6 / 2.0 | 1.1 / 3.6 | 310 | 230 |
| 5,443 / 12,000 | 0.3 / 1.0 | 0.7 / 2.3 | 350 | 270 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 5,443 / 12,000 | 7.3 / 24.0 |
| 2nd | 4,563 / 10,060 | 16.0 / 52.6 |
| 3rd | 3,928 / 8,659 | 26.1 / 85.8 |
| 4rd | 3,448 / 7,601 | 30.5 / 100 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material for a period of twelve months from date of purchase. Wire ropes are not included under warranty.

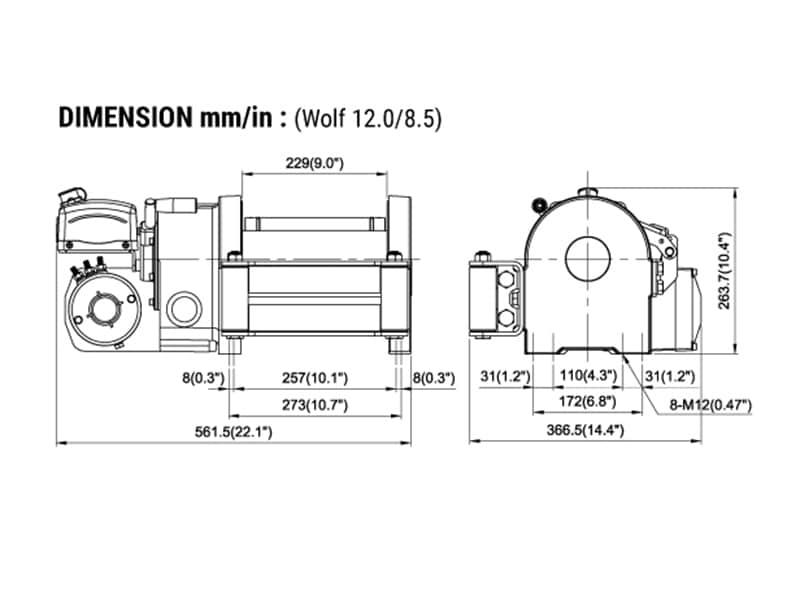

外形尺寸
