Wolf 8.5
电动绞盘 · Wolf 8.5
8,500 lb Electric Worm Gear Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 8,500 lbs（3,856 kgf）
- Robust, extreme heavy duty worm drive
- Heavy duty series wound motor for high torque output and fast line speed under extreme operating condition.
- Detachable weather-resistant control box mounted elsewhere on the vehicle.
- 2 stages spur gears plus 1 exceptionally strong worm gear for reversing protection.
- Irreversible worm gear brake as well as an auxiliary mechanism ratchet wheel brake performs instant braking and free slip.
- Mechanism lever clutch for rapid wire rope payout.
- Heavy duty sealed contactor gives better water resistance and lower amp. draw.
- Higher D/d ratio (Drum dia./rope dia.) allows light commercial applications of car transporter, wrecker, tractor, lorry and fire/rescue engine.
- Meets SAE J706, CE Machinery Directive 2006/42/EC and REMSA Standards.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 780254 (12V) / PN 780988 (24V) |
| Rated line pull | 3,856 kg / 8,500 lb |
| Motor | 3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound |
| Gear train | 2-stage spur gear PLUS worm gear 228.9:1 |
| Clutch (freespooling) | Mechanism lever |
| Brake | Irreversible worm gear brake PLUS mechanism ratchets wheel brake |
| Drum size | 82 x 229 mm (3.2” x 9") |
| Control | Waterproof remote control w/5 m (17') cord |
| Rope type | Galvanized aircraft A7 x 19 |
| Rope size | 8.0 mm x 45 m (5/16" x 150') |
| Mounting bolt pattern | 273 x 110 mm (10.7” x 4.3”) 257 x 172 mm (10.1" x 6.8") |
性能数据
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
|---|---|---|---|---|
| 12V | 24V | 12V | 24V | |
| No load | 7.0 / 23.0 | 9.5 / 31.2 | 60 | 50 |
| 907 / 2,000 | 3.0 / 9.8 | 5.0 / 16.4 | 160 | 130 |
| 1,814 / 4,000 | 2.2 / 7.2 | 3.0 / 9.8 | 220 | 190 |
| 2,722 / 6,000 | 1.5 / 4.9 | 2.3 / 7.5 | 300 | 250 |
| 3,630 / 8,000 | 1.1 / 3.6 | 1.3 / 4.3 | 390 | 320 |
| 3,856 / 8,500 | 1.0 / 3.3 | 1.2 / 3.9 | 430 | 360 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
|---|---|---|
| 1st | 3,856 / 8,500 | 8.0 / 26.4 |
| 2nd | 3,279 / 7,229 | 17.5 / 57.4 |
| 3rd | 2,853 / 6,289 | 28.4 / 93.1 |
| 4rd | 2,524 / 5,566 | 40.7 / 133.4 |
| 5th | 2,264 / 4,991 | 45.0 / 150.0 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material for a period of twelve months from date of purchase. Wire ropes are not included under warranty.

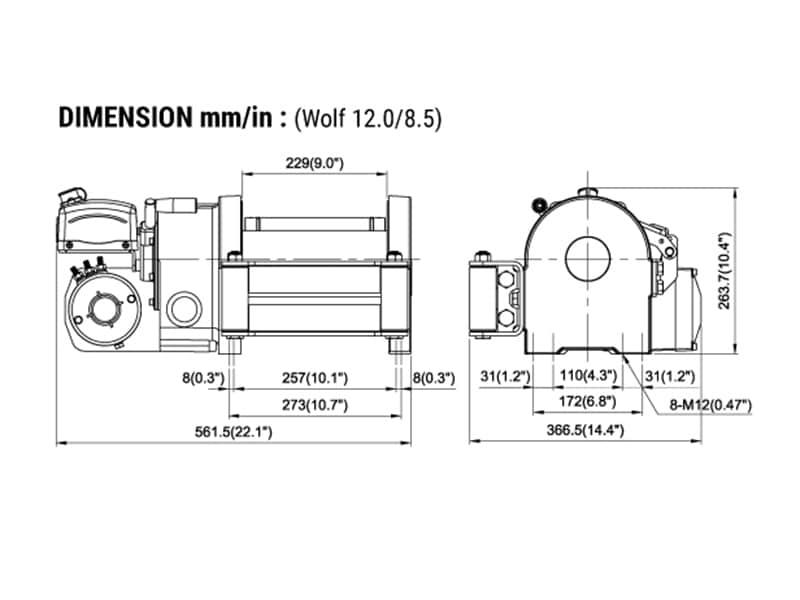

外形尺寸
