COMEUP
APE 16
液压绞盘 · APE 16
1,600 kg Hydraulic Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 3,527 lbs（1,600 kgf）
- Internally lubricated for reliable power and an exceptionally long service life.
- Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
- Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
- The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
- The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
- The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
- Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 681920 |
| Rated line lift | 1,600 kg ( 3,527 lb ) single line at the top layer of rope |
| Line speed | 43 mpm / 141 fpm single line at the top layer of rope |
| Motor | 159 cm3/rev ( 9.7 in3/rev ) |
| Operation pressure | 205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar |
| Max-Min pump flow | 45 - 15 l/min ( 11.9 - 4.0 g/min ) |
| Gear ratio | 1-stage planetary 5.8:1 |
| Brake | Multi-Disc Brake (MDB) patented and counter-balance valve together |
| Winch construction | steel housings with steel drum |
| Winch Rotation | counter clockwise rotation of the drum |
| Drum size (dxDxL) | 210 x 344 x 191 mm (8.3” x 13.5” x 7.5”) |
| Recommended wire rope | 10 mm x 57m with 2,160 N/mm2 grade with minimum breaking strength of 78.2 kN for EN 14492-2 rating 3/8” x 187 ft with EIPS grade with minimum breaking strength of 17,593 lbf for ASME B30.7 rating |
| Mounting bolt pattern | 290 x 196 mm ( 11.4” x 7.7”) |
性能数据
Line Lift and Rope Capacity
| Layer of Wire Rope | Lift by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 2,036 / 4,489 | 33.8 / 111 | 12.5 / 41 |
| 2nd | 1,866 / 4,414 | 36.8 /121 | 26.2 / 86 |
| 3rd | 1,723 / 3,796 | 40 / 131 | 41 / 134 |
| 4th | 1,600 / 3,527 | 43 / 141 | 57 / 187 |
The total rope on the drum may vary from figures stated elsewhere
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the top layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

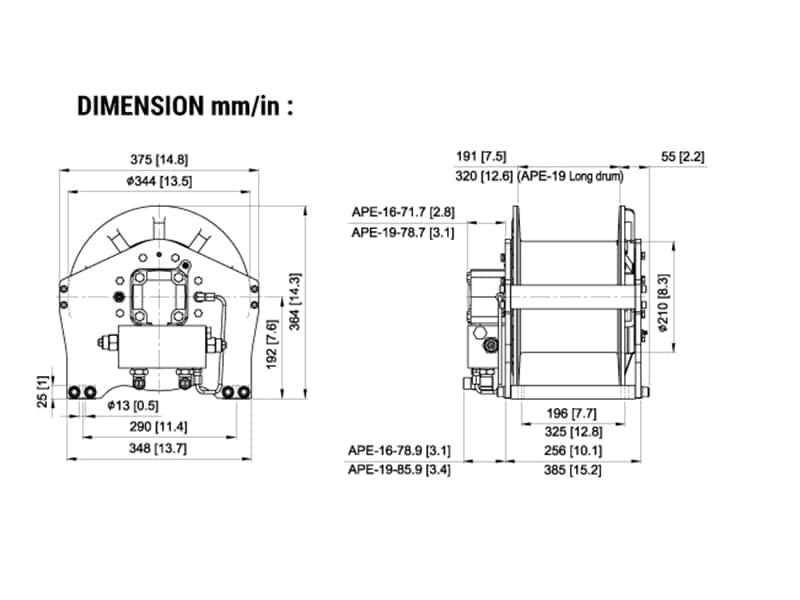

外形尺寸
