COMEUP
APE 19
液压绞盘 · APE 19
1,900 kg Hydraulic Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 4,190 lbs（1,901 kgf）
- Internally lubricated for reliable power and an exceptionally long service life.
- Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
- Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
- The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
- The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
- The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
- Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 681930 (Std. drum) / PN 681940 (Long drum) |
| Rated line lift | 1,900 kg ( 4,190 lb ) single line at the top layer of rope |
| Line speed | 46 4 mpm / 153 fpm single line at the top layer of rope |
| Motor | 200 cm3/rev ( 12.2 in3/rev ) |
| Operation pressure | 205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar |
| Max-Min pump flow | 60 - 20 l/min ( 15.9 - 5.3 g/min ) |
| Gear ratio | 1-stage planetary 5.8:1 |
| Brake | Multi-Disc Brake (MDB) patented and counter-balance valve together |
| Winch construction | steel housings with steel drum |
| Winch Rotation | counter clockwise rotation of the drum |
| Drum size (dxDxL) | 210 x 344 x 191 mm (8.3” x 13.5” x 7.5”) for std. drum 210 x 344 x 320 mm (8.3” x 13.5” x 12.6”) for long drum |
| Recommended wire rope | 12 mm x 48 m for std. drum and 12 mm x 82 m for long drum with 1,960 N/mm2 grade with minimum breaking strength of 100. kN for EN 14492-2 rating 1/2” x 157 ft for std. drum and 1/2” x 269 ft for long drum with EIPS grade with minimum breaking strength of 22,487 lbf for ASME B30.7 rating |
| Mounting bolt pattern | 290 x 196 mm ( 11.4” x 7.7”) for std. drum 290 x 325 mm (11.4” x 112.8”) for long drum |
性能数据
Line Lift and Rope Capacity
| Layer of Wire Rope | Lift by Layer, kg / lb | Line Speed, mpm/fpm | Total Rope on the Drum, m / ft | |
|---|---|---|---|---|
| Std. drum | Long drum | |||
| 1st | 2,515 / 5,545 | 35.0 / 115 | 10.4 / 34 | 18 / 59 |
| 2nd | 2,270 / 5,004 | 38.8 / 127 | 22 / 72 | 38 / 124 |
| 3rd | 2,068 / 4,559 | 42.6 / 140 | 35 / 114 | 60 / 195 |
| 4th | 1,900 / 4,190 | 46.4 / 153 | 48 / 157 | 82 / 269 |
The total rope on the drum may vary from figures stated elsewhere
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the top layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

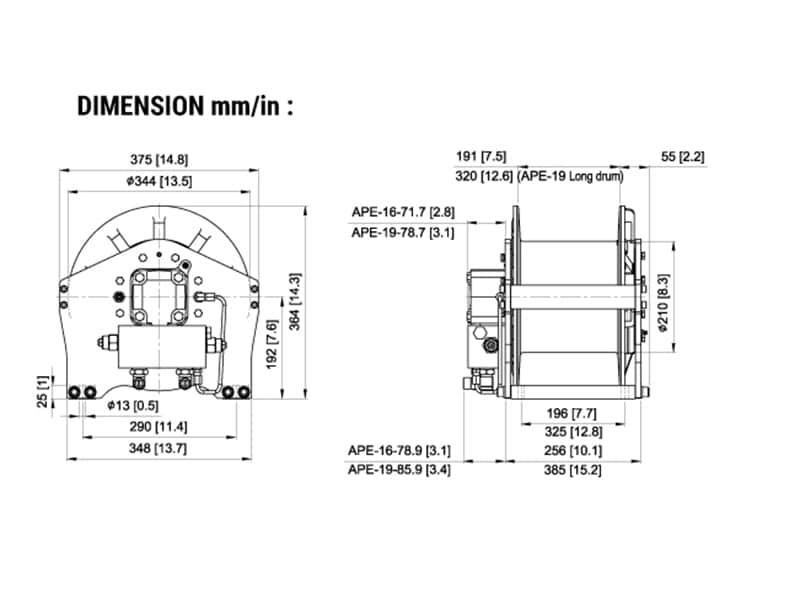

外形尺寸
