液压绞盘 · APE 9
900 kg Hydraulic Hoist
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 1,984 lbs（900 kgf）
- Internally lubricated for reliable power and an exceptionally long service life.
- Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
- Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
- The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
- The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
- The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
- Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 681900 |
| Rated line lift | 900 kg ( 1,984 lb ) single line at the top layer of rope |
| Line speed | 37 mpm / 121 fpm single line at the top layer of rope |
| Motor | 155.7 cm3/rev ( 9.5 in3/rev ) |
| Operation pressure | 140 bar ( 2,031 psi )with maximum back pressure on return line of 5 bar |
| Max-Min pump flow | 35 - 15 l/min ( 9.2 - 4.0 g/min ) |
| Gear ratio | 1-stage planetary 5:1 |
| Brake | Multi-Disc Brake (MDB) patented and counter-balance valve together |
| Winch construction | steel housings with steel drum |
| Winch Rotation | counter clockwise rotation of the drum |
| Drum size (dxDxL) | 205 x 305 x 191 mm (8.1” x 12.0” x 7.5”) |
| Recommended wire rope | 8 mm x 68 m with 1,960 N/mm2 grade with minimum breaking strength of 44.7 kN for EN 14492-2 rating 5/16” x 223 ft with EIPS grade with minimum breaking strength of 10,003 lbf for ASME B30.7 rating |
| Mounting bolt pattern | 200 x 170 mm ( 7.9” x 6.7”) |
性能数据
Line Lift and Rope Capacity
| Layer of Wire Rope | Lift by Layer, kg / lb | Line Speed, mpm / fpm | Total Rope on the Drum, m / ft |
|---|---|---|---|
| 1st | 1,100 / 2,425 | 30.1 / 99 | 15 / 50 |
| 2nd | 1,023 / 2,255 | 32.3 / 106 | 31.8 / 104 |
| 3rd | 956 / 2,108 | 34.6 / 114 | 49.4 / 162 |
| 4th | 900 / 1,984 | 37 / 121 | 68 / 223 |
The total rope on the drum may vary from figures stated elsewhere
Warning
- The hoist is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the top layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

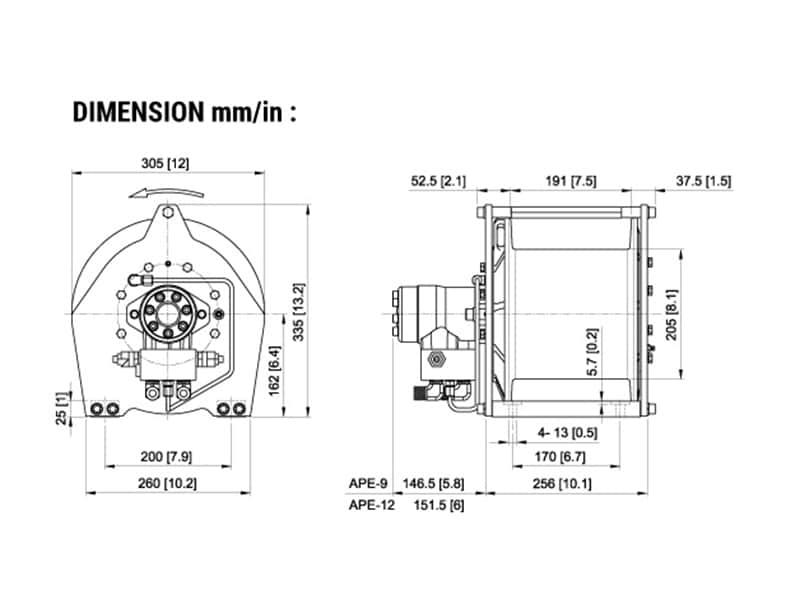

外形尺寸
