Bison 20
液压绞盘 · Bison 20
9.07 Tonnes Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 20,000 lbs（9,072 kgf）
- Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
- 155.7 cm3/rev highly efficient and constant operating torque motor with 9,070 kg / 20,000 lb capacity
- Hardened 2 stage planetary gear train with 30:1 gear ratio provides faster line speed
- Built-in air clutch for rapid wire rope payout
- The Multi-Disc Brake (MDB) patented for holding full load
- Great for severe duty trailers, roll-back carriers, and commercial recovery application
- Roller fairlead, cable tensioner and two ways counterbalance valve supplied
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches. Remark: EN Version is available upon request.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 682030 (Std. drum) / PN 682169 (Long drum) |
| Rated line pull | 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating) |
| Line speed (at 1st layer of rope) | 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min) |
| Operation pressure | 175 bar / 2,540 psi |
| Max oil flow | 60 l/min (15.9 g/min) |
| Hydraulic motor | 155.7 cm3/rev (9.5 in3/rev) |
| Gear ratio | 2-stage planetary gear 30:1 |
| Winch construction | Cast housings with steel drum |
| Clutch (Freespooling) | Output shaft disengaged |
| Brake | Multi-Disc Brake (MDB) patented and counterbalance valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 146 mm (5.8") |
| Drum flange diameter | 314 mm (12.4”) |
| Distance between flanges | 203 mm (8") - Std. drum 355.6 mm (14") - Long drum |
| Mounting bolt pattern | 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum 190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mmc (10.5” x 18”) - Long drum |
| Wire rope recommended | 16 mm x 30 m for Std. drum and 55 m for Long drum, 1,960 N/mm2 grade with a minimum breaking strength of 179 kN required for EN 14492-1 rating. 9/16” x 141’ for Std. drum and 262’ form Long drum, EIPS grade with a minimum breaking strength of 30,472 lbf required for SAE J706 rating. Compliant with EN 14492-1 requirements for recovery winches: The working coefficient for the first rope layer on the drum shall be at least 2. The D/d ratio to the center of the rope shall be at least 10 for the drum. Drum freeboard shall be at least 1.5 x rope diameter. |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed | |||
|---|---|---|---|---|---|---|
| Std . drum | Long drum | at 60 l/min (15.9 g/min ), mpm / fpm | ||||
| 14 mm rope | 16 mm rope | 14 mm rope | 16 mm rope | |||
| 1st | 9,070 / 20,000 | 7 / 23 | 6 / 20 | 12 / 39 | 11 / 36 | 7.1 / 23 |
| 2nd | 7,719 / 17,017 | 15 / 49 | 13 / 43 | 27 / 89 | 24 / 79 | 8.3 / 27 |
| 3rd | 6,719 / 14,813 | 24 / 79 | 21 / 69 | 43 / 141 | 39 / 128 | 9.5 / 31 |
| 4th | 5,948 / 13,113 | 34 / 112 | 30 / 98 | 62 / 203 | 55 / 180 | 10.8 / 35 |
| 5th | 5,335 / 11,762 | 43 / 141 | - | 80 / 262 | - | 12 / 39 |
- Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor or EN version, please contact your sales representative now for further information.
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

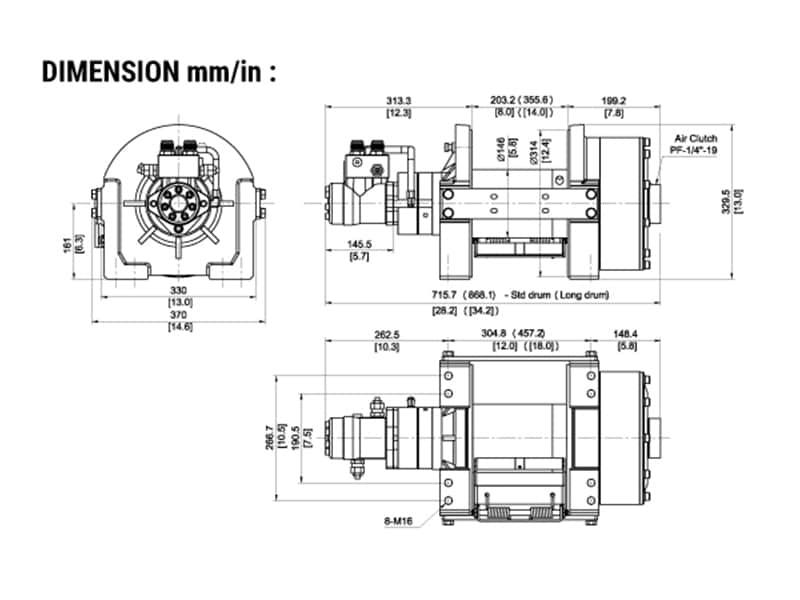

外形尺寸
