Bison 30
液压绞盘 · Bison 30
13.6 Tonnes Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 30,000 lbs（13,608 kgf）
- Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
- 155.7 cm3/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
- Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
- Built-in air clutch for rapid wire rope payout
- The Multi-Disc Brake (MDB) patented for holding full load
- Great for severe duty trailers, roll-back carriers, and commercial recovery application
- Roller fairlead, cable tensioner and two ways counterbalance valve supplied
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC. Remark: EN Version is available upon request.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 683030 (Std. drum) / PN 683352 (Long drum) |
| Rated line pull | 13,600 kg / 30,000 lb (SAE J706 rating) |
| Line speed (at 1st layer of rope) | 5 mpm at 60 l/min (16 fpm at 15.9 g/min) |
| Operation pressure | 175 bar / 2,540 psi |
| Max oil flow | 60 l/min (15.9 g/min) |
| Hydraulic motor | 155.7 cm3/rev (9.5 in3/rev) |
| Gear ratio | 2-stage planetary gear 41:1 |
| Winch construction | Cast housings with steel drum |
| Clutch (Freespooling) | Output shaft disengaged |
| Brake | Multi-Disc Brake (MDB) patented and counterbalance valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 152.5 mm (6") |
| Drum flange diameter | 343 mm (13.5”) |
| Distance between flanges | 203 mm (8") - Std. drum 355.6 mm (14") - Long drum |
| Mounting bolt pattern | 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum 190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mm (10.5” x 18”) - Long drum |
| Wire rope recommended | 16 mm x 43 m ( 5/8” x 141’) - Std. drum 16 mm x 75 m ( 5/8” x 246’ ) - Long drum 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 rating |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed | |
|---|---|---|---|---|
| Std . drum | Long drum | at 60 l/min (15.9 g/min ), mpm / fpm | ||
| 1st | 13,600 / 30,000 | 6 / 20 | 11 / 36 | 5.0 / 16 |
| 2nd | 11,438 / 25,216 | 14 / 44 | 25 / 82 | 5.9 / 19 |
| 3rd | 9,864 / 21,745 | 22 / 73 | 40 / 131 | 6.9 / 23 |
| 4th | 8,670 / 19,115 | 32 / 104 | 58 / 190 | 7.8 / 26 |
| 5th | 7,735 / 17,052 | 43 / 141 | 75 / 246 | 8.8 / 29 |
- Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor or EN version, please contact your sales representative now for further information.
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

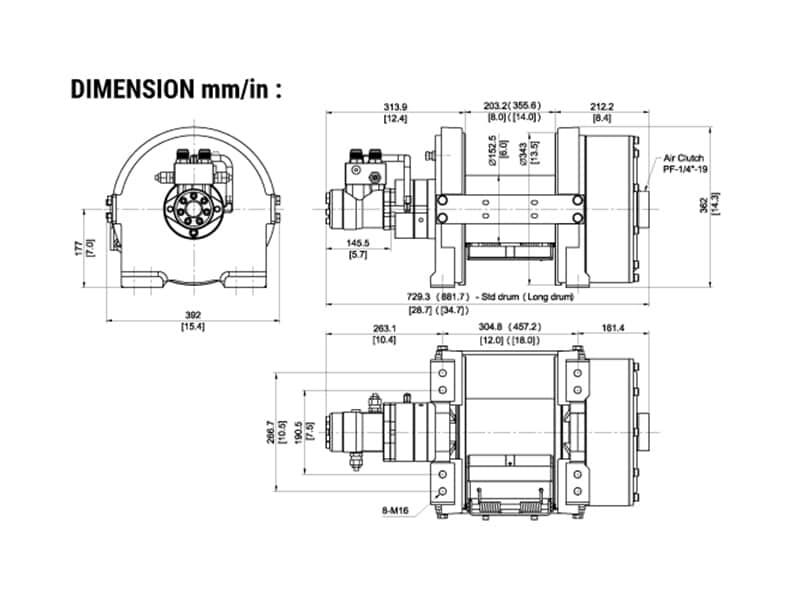

外形尺寸
