Bison 50
液压绞盘 · Bison 50
22.6 Tonnes Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 50,000 lbs（22,680 kgf）
- Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
- 251.8 cm3/rev highly efficient and constant operating torque motor with 22,680 kg / 50,000 lb capacity
- Hardened 2 stage planetary gear train with 44:1 gear ratio provides faster line speed
- Built-in air clutch for rapid wire rope payout
- The Multi-Disc Brake ( MDB ) patented for holding full load
- Great for severe duty trailers, roll-back carriers, and commercial recovery application
- Roller fairlead, cable tensioner and two ways counterbalance valve supplied
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC. Remark: EN Version is available upon request.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 685010 (Std. drum) |
| Rated line pull | 22,680 kg / 50,000 lb (SAE J706 rating) |
| Line speed (at 1st layer of rope) | 5.7 mpm at 100 l/min (19 fpm at 26.5 g/min) |
| Operation pressure | 200 bar / 2,900 psi |
| Max oil flow | 100 l/min (26.5 g/min) |
| Hydraulic motor | 251.8 cm3/rev (15.4 in3/rev) |
| Gear ratio | 2-stage planetary gear 44:1 |
| Winch construction | Cast housings with steel drum |
| Clutch (Freespooling) | Output shaft disengaged |
| Brake | Multi-Disc Brake (MDB) patented and counterbalance valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 180 mm (7.1") |
| Drum flange diameter | 406 mm (16”) |
| Distance between flanges | 368 mm (14.5") |
| Mounting bolt pattern | 240 x 453 mm (13.4” x 17.8”) ; 340 x 453 mm (13.4” x 17.8") |
| Wire rope recommended | 22.4 mm x 48 m (7/8” x 157’) 1,770 N/mm2 (EIPS) breaking strength of 305 kN (68,442 lbf) required for SAE J706 rating |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed |
|---|---|---|---|
| Std . drum | at 100 l/min (26.5 g/min ), mpm / fpm | ||
| 1st | 22,680 / 50,000 | 10 / 33 | 5.7 / 19 |
| 2nd | 18,570 / 40,940 | 22 / 72 | 7.0 / 23 |
| 3rd | 15,720 / 34,660 | 36 / 118 | 8.3 / 27 |
| 4th | 13,630 / 30,050 | 48 / 157 | 9.6 / 31 |
- Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor or EN version, please contact your sales representative now for further information.
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

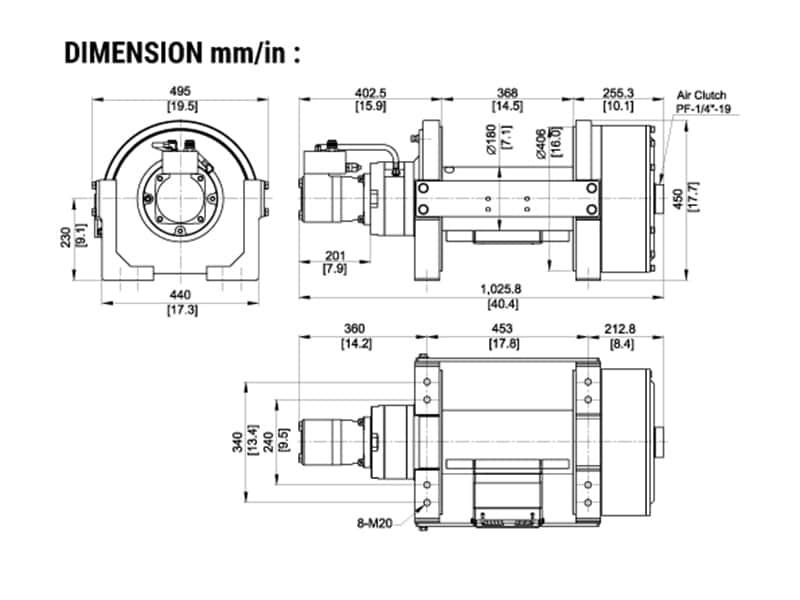

外形尺寸
