COMEUP
HV-10
液压绞盘 · HV-10
10,000 lb Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 10,000 lbs（4,536 kgf）
- Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
- 5.9 in3 / rev highly efficient and constant operating torque motor with 10,000 lb capacity.
- Hardened 2 stage planetary gear train with 16:1 gear ratio provides faster line speed.
- Turn clutch by a ergonomic T-handle for rapid wire rope payout.
- Drag brake and over-center valve provided for holding full load.
- Great for severe duty trailers, roll-back carriers, and commercial recovery application.
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 682546 (Std. drum) / PN 683129 (Std. drum - Clutch in left side) |
| Rated line pull | 4,535 kg / 10,000 lb (SAE J706 rating) 4,300 kg (EN 14492-1 rating) |
| Line speed (at 1st layer of rope) | 14 mpm at 60 l/min (46 fpm at 15.9 g/min) |
| Operation pressure | 150 bar / 2,175 psi |
| Max oil flow | 60 l/min (15.9 g/min) |
| Hydraulic motor | 97.3 cm3/rev (5.9 in3/rev) |
| Gear ratio | 2-stage planetary gear 16:1 |
| Winch construction | Aluminum die cast housings with steel drum |
| Clutch (Freespooling) | Rotating ring gear |
| Brake | Spring applied drag brake together with over-center valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 102 mm (4") |
| Drum flange diameter | 201.5 mm (7.9”) |
| Distance between flanges | 253 mm (10") |
| Mounting bolt pattern | 291.6 x 171.2 mm (11.5” x 6.7”) 374.2 x 114 mm (14.7” x 4.5”) |
| Wire rope recommended | 11 mm x 27 m (7/16" x 89'), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings. |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed at 60 l/min (15.9 g/min), mpm / fpm |
|---|---|---|---|
| 1st | 4,535 / 10,000 | 8.0 / 26.2 | 14.0 / 46.0 |
| 2nd | 3,796 / 8,369 | 17.5 / 57.4 | 16.3 / 53.5 |
| 3rd | 3,264 / 7,196 | 27.0 / 89.0 | 19.0 / 62.3 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

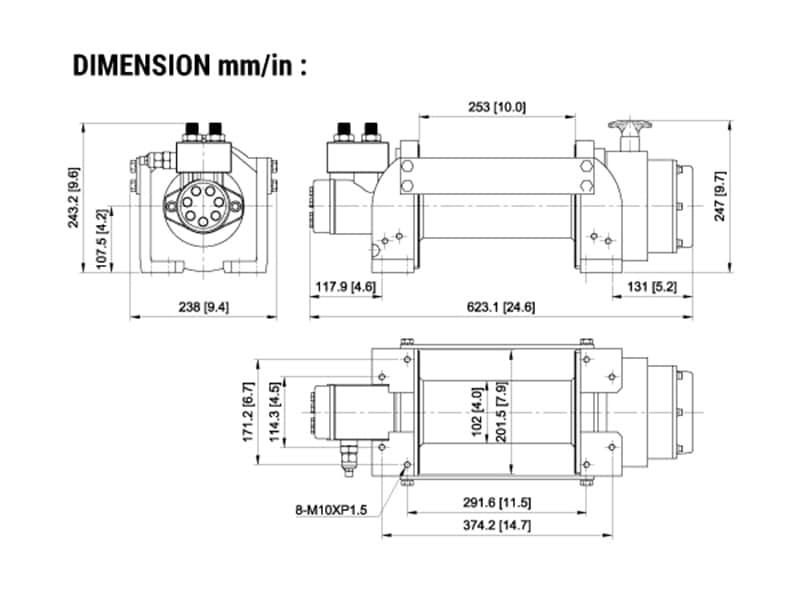

外形尺寸
