COMEUP
HV-12
液压绞盘 · HV-12
12,000 lb Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
- Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
- 7.6 in3 / rev highly efficient and constant operating torque motor with 12,000 lb capacity.
- Hardened 2 stage planetary gear train with 19.4:1 gear ratio provides faster line speed.
- Turn clutch by a ergonomic T-handle for rapid wire rope payout.
- Drag brake and over-center valve provided for holding full load.
- Great for severe duty trailers, roll-back carriers, and commercial recovery application.
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 684311 (Std. drum) / PN 685433 (Std. drum - Clutch in left side) |
| Rated line pull | 5,440 kg / 12,000 lb (SAE J706 rating) 5.100 kg (EN 14492-1 rating) |
| Line speed (at 1st layer of rope) | 10 mpm at 60 l/min (33 fpm at 15.9 g/min) |
| Operation pressure | 150 bar / 2,175 psi |
| Max oil flow | 60 l/min (15.9 g/min) |
| Hydraulic motor | 125 cm3/rev (7.6 in3/rev) |
| Gear ratio | 2-stage planetary gear 19.4:1 |
| Winch construction | Aluminum die cast housings with steel drum |
| Clutch (Freespooling) | Rotating ring gear |
| Brake | Spring applied drag brake together with over-center valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 114.3 mm (4.5") |
| Drum flange diameter | 252 mm (9.9”) |
| Distance between flanges | 255 mm (10") |
| Mounting bolt pattern | 303.5 x 114.3 mm (12” x 4.5”) 368.5 x 171.2 mm (14.5” x 6.7”) |
| Wire rope recommended | 12 mm x 39 m (1/2" x 128'), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 100.5 kN (22,552 lbf) required for SAE J706 and EN 14492-1 ratings |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed at 60 l/min (15.9 g/min), mpm / fpm |
|---|---|---|---|
| 1st | 5,440 / 12,000 | 8.2 / 26.9 | 10.0 / 33.0 |
| 2nd | 4,570 / 10,075 | 18.0 / 59.1 | 11.6 / 38.1 |
| 3rd | 3,939 / 8,684 | 29.3 / 96.1 | 13.5 / 44.3 |
| 4th | 3,462 / 7,632 | 39.0 / 128.0 | 15.4 / 50.5 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

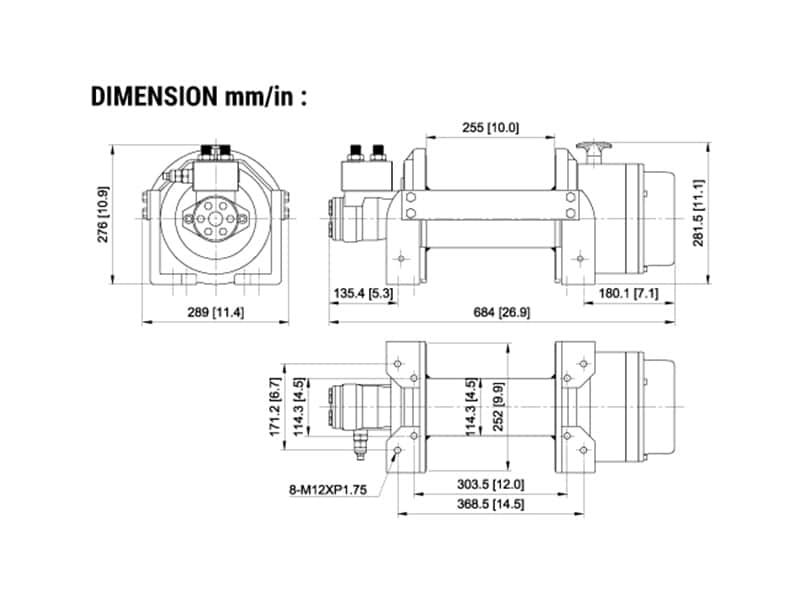

外形尺寸
