COMEUP
HV-8
液压绞盘 · HV-8
8,000 lb Hydraulic Recovery Winch
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 8,000 lbs（3,629 kgf）
- Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
- 4.7 in3 / rev highly efficient and constant operating torque motor with 8,000 lb capacity.
- Hardened 2 stage planetary gear train with 16:1 gear ratio provides faster line speed.
- Turn clutch by a ergonomic T-handle for rapid wire rope payout.
- Drag brake and over-center valve provided for holding full load.
- Great for severe duty trailers, roll-back carriers, and commercial recovery application.
- Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Specification | Value |
|---|---|
| Part number | PN 680816 (Std. drum) / PN 681091 (Long drum) PN 681123 (Std. drum - Clutch in left side) / PN 681347 (Long drum - Clutch in left side) |
| Rated line pull | 3,630 kg / 8,000 lb (SAE J706 rating) 3,560 kg (EN 14492-1 rating) |
| Line speed (at 1st layer of rope) | 15 mpm at 60 l/min (49 fpm at 15.9 g/min) |
| Operation pressure | 150 bar / 2,175 psi |
| Max oil flow | 60 l/min (15.9 g/min) |
| Hydraulic motor | 77.8 cm3/rev (4.7 in3/rev) |
| Gear ratio | 2-stage planetary gear 16:1 |
| Winch construction | Aluminum die cast housings with steel drum |
| Clutch (Freespooling) | Rotating ring gear |
| Brake | Spring applied drag brake together with over-center valve supplied |
| Rotation of winch | Wire rope shall be under-wound orientation only |
| Drum barrel diameter | 90 mm (3.5") |
| Drum flange diameter | 201.5 mm (7.9”) |
| Distance between flanges | 190 mm (7.5") - Std. drum 253 mm (10") - Long drum |
| Mounting bolt pattern | 228.6 x 171.2 mm (9” x 6.7”) ; 311.2 x 114.3 mm (12.3" x 4.5") - Std. drum 291.6 x 171.2 mm (11.5” x 6.7”) ; 374.2 x 114.3 mm (14.7" x 4.5") - Long drum |
| Wire rope recommended | 10 mm x 30.5 m (3/8" x 100') for Std. drum and 40 m (131') for Long drum, 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 69.8 kN (15,663 lbf) required.for SAE J706 and EN 14492-1 ratings |
| Specification | The working coefficient for the first rope layer on the drum shall be at least 2. |
| Specification | The D/d ratio to the center of the rope shall be at least 10 for the drum. |
| Specification | Drum freeboard shall be at least 1.5 x rope diameter. |
性能数据
Line Pull and Rope Capacity
| Layer of Wire Rope | Pull by Layer, kg / lb | Total Rope on the Drum, m / ft | Line Speed | |
|---|---|---|---|---|
| Std . drum | Long drum | at 60 l/min (15.9 g/min ), mpm / fpm | ||
| 1st | 3,630 / 8,000 | 5.8 / 19.0 | 7.8 / 25.6 | 15.0 / 49.0 |
| 2nd | 3,025 / 6,669 | 12.8 / 42.0 | 17.1 / 56.1 | 18.2 / 59.7 |
| 3rd | 2,593 / 5,717 | 20.9 / 68.6 | 28.0 / 91.9 | 21.2 / 69.6 |
| 4th | 2,269 / 5,002 | 30.5 / 100 | 40 / 131 | 24.2 / 79.4 |
Warning
- The winch is not intended to be used in any manner for the movement or lifting of personnel.
- The rated line pull shown is based on the first layer of rope on the drum.
- The rope winding on the drum shall remain 5 wraps from the drum.
Warranty
- Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

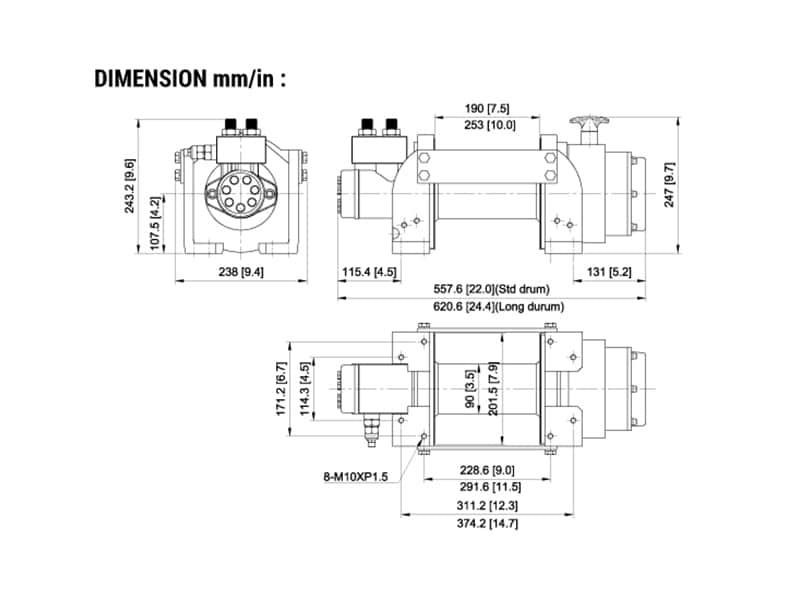

外形尺寸
