GEARMATIC
GM12A
液压绞盘 · GM12A
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 12,000 lbs（5,443 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Parameter | Specification |
|---|---|
| Gear Ratio | 41:1 |
| Unit Weight | 524 to 545 lb (238 to 247 kg) |
| Motor | 051 (5.1 CID) |
| Drum Sizes | 01 — 7.63" (194 mm) Barrel x 14.63" (372 mm) Flange x 10" (254 mm) Between Flanges; 05 — 7.63" (194 mm) Barrel x 16.63" (422 mm) Flange x 10" (254 mm) Between Flanges |
| Rope Diameters | 3/8" (10 mm), 7/16" (11 mm), 1/2" (13 mm), 9⁄16" (14 mm), 5/8" (16 mm) |
| Rope Storage | 01 — 225 ft (68.6 m) for 5/8" (16 mm) Rope; 05 — 352 ft (107.3 m) for 5/8" (16 mm) Rope |
性能数据
| GM12A-41051-01 EQUAL SPEED REVERSE | |||||
|---|---|---|---|---|---|
| Line Pull* | 12,000 lb(5,443 kg) | 10,420 lb(4,726 kg) | 9,200 lb(4,173 kg) | 8,250 lb(3,742 kg) | 7,470 lb(3,388 kg) |
| Line Speed* | 108 fpm(32.8 mpm) | 124 fpm(37.8 mpm) | 140 fpm(42.7 mpm) | 157 fpm(47.7 mpm) | 173 fpm(52.7 mpm) |
| Drum Capacity | 34 ft(10.4 m) | 74 ft(22.6 m) | 119 ft(36.3 m) | 169 ft(51.5 m) | 225 ft(68.6 m) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | |
|---|---|---|---|---|---|---|---|
| GM12A-HSR-41/9051-05 HIGH SPEED REVERSE** | |||||||
| Line Pull* | 12,000 lb(5,443 kg) | 10,420 lb(4,726 kg) | 9,200 lb(4,173 kg) | 8,250 lb(3,742 kg) | 7,470 lb(3,388 kg) | 6,800 lb(3,084 kg) | 6,260 lb(2,840 kg) |
| Line Speed* | 108 fpm(32.8 mpm) | 124 fpm(37.8 mpm) | 140 fpm(42.7 mpm) | 157 fpm(47.7 mpm) | 173 fpm(52.7 mpm) | 191 fpm(58.1 mpm) | 207 fpm(63.2 mpm) |
| Drum Capacity | 34 ft(10.4 m) | 74 ft(22.6 m) | 119 ft(36.3 m) | 169 ft(51.5 m) | 225 ft(68.6 m) | 286 ft(87.2 m) | 352 ft(107.3 m) |

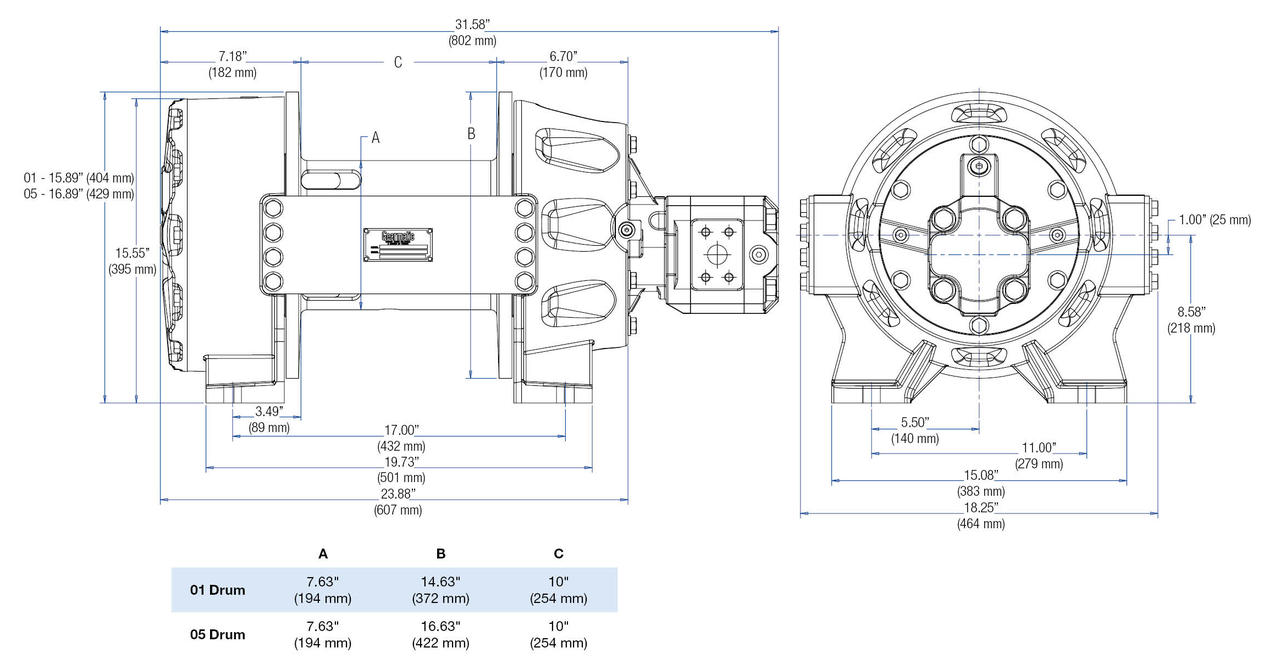

外形尺寸
