GEARMATIC
GM27A
液压绞盘 · GM27A
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 27,000 lbs（12,247 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Parameter | Specification |
|---|---|
| Gear Ratio | 40:1 |
| Unit Weight | 1,327 to 2,009 lb (602 to 911 kg) |
| Motor | 12 CID |
| Drum Sizes | 02 — 10” (254 mm) Barrel x 24” (607 mm) Flange x 11” (280 mm) Between Flanges 05 — 10” (254 mm) Barrel x 34” (864 mm) Flange x 29” (737 mm) Between Flanges |
| Rope Diameters | 3/4” (19 mm), 7/8” (22 mm) |
| Rope Storage | 02 — 334 ft (102 m ) for 7/8” (22 mm) 05 — 2,169 ft (661 m ) for 7/8” (22 mm) |
性能数据
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | |
|---|---|---|---|---|---|---|---|
| GM27A-40120-02 EQUAL SPEED REVERSE | |||||||
| Line Pull* | 27,000 lb (12,247 kg) | 23,250 lb (10,546 kg) | 20,420 lb (9,262 kg) | 18,200 lb (8,255 kg) | 16,420 lb (7,448 kg) | 14,960 lb (6,786 kg) | 13,730 lb (6,228 kg) |
| Line Speed* | 143 fpm (44 mph) | 165 fpm (51 mph) | 189 fpm (58 mph) | 212 fpm (65 mph) | 235 fpm (72 mph) | 258 fpm (79 mph) | 280 fpm (86 mph) |
| Drum Capacity | 32 ft (10 m) | 69 ft (21 m) | 112 ft (34 m) | 159 ft (49 m) | 212 ft (65 m) | 271 ft (83 m) | 334 ft (102 m) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | Layer 8 | Layer 9 | Layer 10 | Layer 11 | Layer 12 | Layer 13 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GM27A-HSR-40/9120-05 HIGH SPEED REVERSE | |||||||||||||
| Line Pull* | 27,000 lb (12,247 kg) | 23,250 lb (10,546 kg) | 20,420 lb (9,262 kg) | 18,200 lb (8,255 kg) | 16,420 lb (7,448 kg) | 14,960 lb (6,786 kg) | 13,730 lb (6,228 kg) | 12,690 lb (5,756 kg) | 11,800 lb (5,352 kg) | 11,020 lb (5,000 kg) | 10,340 lb (4,690 kg) | 9,740 lb (4,418 kg) | 9,210 lb (4,178 kg) |
| Line Speed* | 143 fpm (44 mph) | 165 fpm (51 mph) | 189 fpm (58 mph) | 212 fpm (65 mph) | 235 fpm (72 mph) | 258 fpm (79 mph) | 280 fpm (86 mph) | 304 fpm (93 mph) | 327 fpm (100 ph) | 350 fpm (107 mph) | 373 fpm (114 mph) | 396 fpm (121 mph) | 420 fpm (128 mph) |
| Drum Capacity | 84 ft (26 m) | 183 ft (56 m) | 295 ft (90 m) | 421 ft (128 m) | 561 ft (171 m) | 714 ft (218 m) | 881 ft (269 m) | 1,062 ft (324 m) | 1,256 ft (383 m) | 1,464 ft (446 m) | 1,685 ft (514 m) | 1,921 ft (586 m) | 2,169 ft (661 m) |

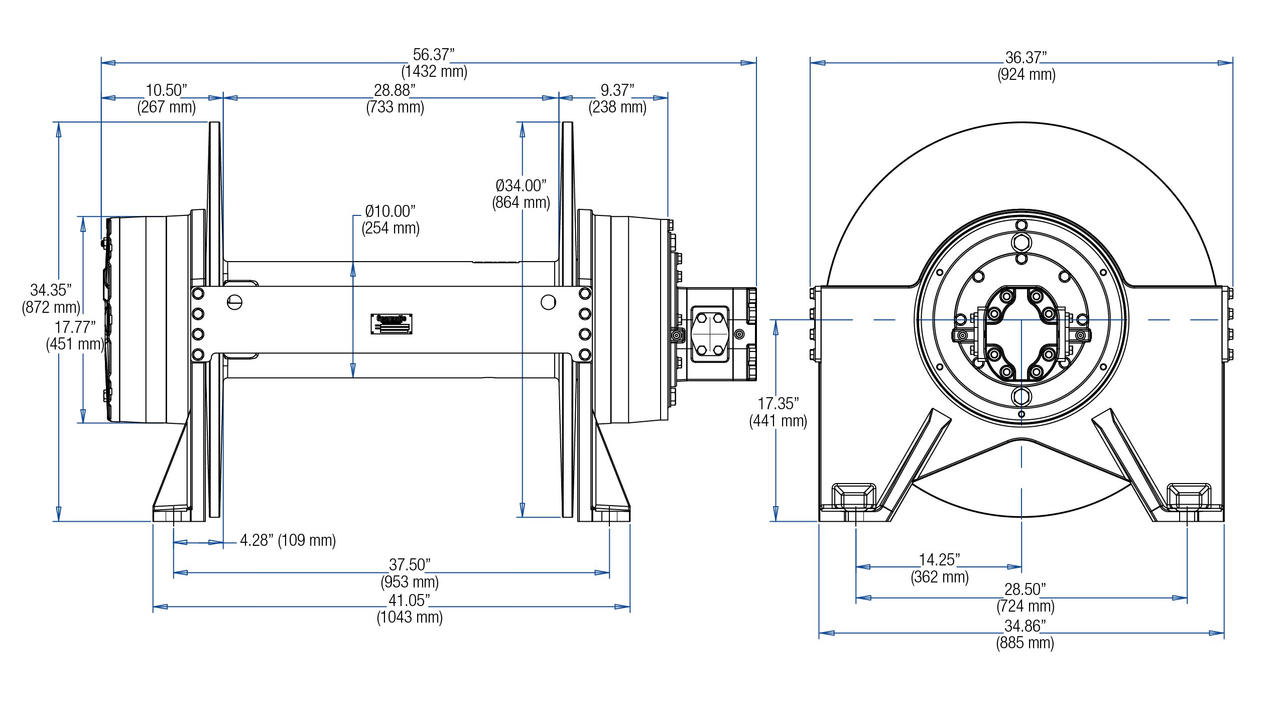

外形尺寸
