GEARMATIC
GM35A
液压绞盘 · GM35A
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 35,000 lbs（15,876 kgf）
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
| Parameter | Specification |
|---|---|
| Gear Ratio | 54:1 |
| Unit Weight | 1,429 to 2,118 lb (648 to 961 kg) |
| Motor | 12 CID |
| Drum Sizes | 02 — 10” (254 mm) Barrel x 24” (607 mm) Flange x 11” (280 mm) Between Flanges 05 — 10” (254 mm) Barrel x 34” (864 mm) Flange x 29” (737 mm) Between Flanges |
| Rope Diameters | 3/4” (19 mm), 7/8” (22 mm) |
| Rope Storage | 02 — 334 ft (102 m ) for 7/8” (22 mm) 05 — 2,169 ft (661 m ) for 7/8” (22 mm) |
性能数据
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | |
|---|---|---|---|---|---|---|---|
| GM35A-54120-02 EQUAL SPEED REVERSE | |||||||
| Line Pull* | 35,000 lb (15,876 kg) | 30,140 lb (13,761 kg) | 26,740 lb (12,007 kg) | 23,600 lb (10,705 kg) | 21,290 lb (9,657 kg) | 19,390 lb (8,795 kg) | 17,800 lb (8,074 kg) |
| Line Speed* | 105 fpm (32 mph) | 122 fpm (37 mph) | 139 fpm (42 mph) | 156 fpm (48 mph) | 173 fpm (53 mph) | 190 fpm (58 mph) | 207 fpm (63 mph) |
| Drum Capacity | 32 ft (10 m) | 69 ft (21 m) | 112 ft (34 m) | 159 ft (49 m) | 212 ft (65 m) | 271 ft (83 m) | 334 ft (102 m) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | Layer 8 | Layer 9 | Layer 10 | Layer 11 | Layer 12 | Layer 13 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GM35A-HSR-54/12120-05 HIGH SPEED REVERSE | |||||||||||||
| Line Pull* | 35,000 lb (15,876 kg) | 30,140 lb (13,761 kg) | 26,740 lb (12,007 kg) | 23,600 lb (10,705 kg) | 21,290 lb (9,657 kg) | 19,390 lb (8,795 kg) | 17,800 lb (8,074 kg) | 16,450 lb (7,462 kg) | 15,300 lb (6,940 kg) | 14,290 lb (6,482 kg) | 13,410 lb (6,083 kg) | 12,630 lb (5,729 kg) | 11,940 lb (5,416 kg) |
| Line Speed* | 105 fpm (32 mph) | 122 fpm (37 mph) | 139 fpm (42 mph) | 156 fpm (48 mph) | 173 fpm (53 mph) | 190 fpm (58 mph) | 207 fpm (63 mph) | 223 fpm (68 mph) | 240 fpm (73 mph) | 257 fpm (78 mph) | 273 fpm (83 mph) | 290 fpm (89 mph) | 307 fpm (94 mph) |
| Drum Capacity | 84 ft (26 m) | 183 ft (56 m) | 295 ft (90 m) | 421 ft (128 m) | 561 ft (171 m) | 714 ft (218 m) | 881 ft (269 m) | 1,062 ft (324 m) | 1,256 ft (383 m) | 1,464 ft (446 m) | 1,685 ft (514 m) | 1,921 ft (586 m) | 2,169 ft (661 m) |

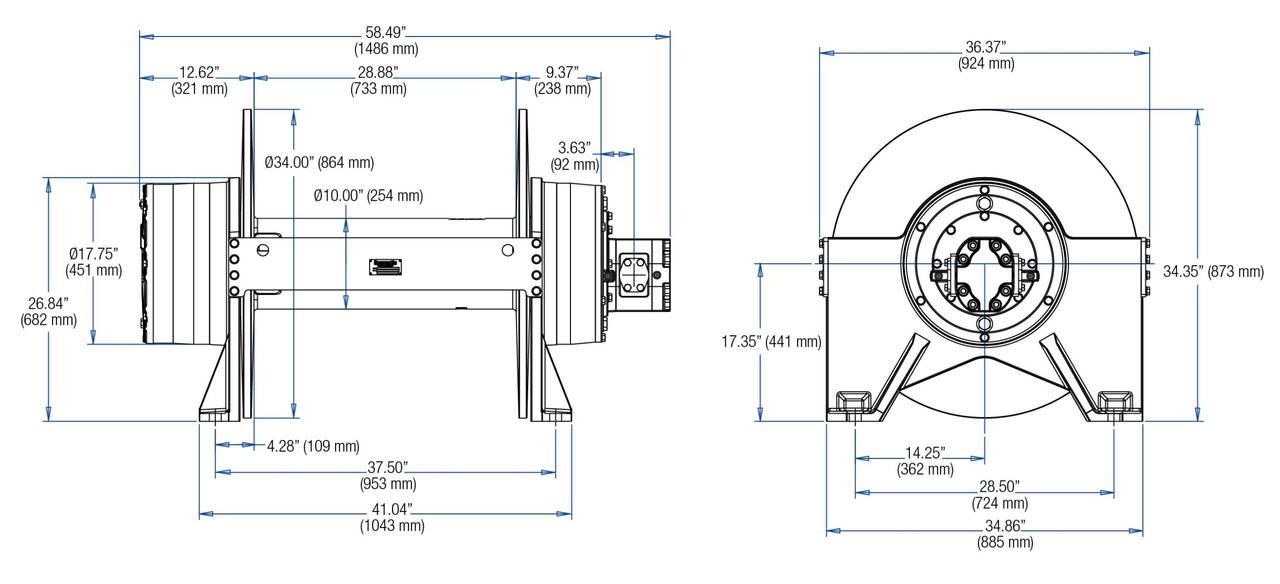

外形尺寸
