KINGONE
ATV 4000
电动绞盘 · ATV 4000
适用场景与工作类型
便携工具
动力户外
牵引绞盘
便携工具
动力户外
牵引绞盘
- 额定拉力
- 4,000 lbs（1,814 kgf）
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gear box delivers the most reliable and durable performance of winch under the worst condition.
- Automatic, double cone brake.
- Rotating ring gear clutch has the free spooling positioned actually for the rapid payout of wire rope with ease.
- Installation ,operation and maintenance with ease.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Line pull: | 1,814kgs/4,000lbs |
|---|---|
| Motor: | 12V/1.6HP 24V/1.0HP |
| Gear Train: | Three stage |
| Gear Ratio: | 187:1 |
| Freespooling Clutch: | Rotating ring gear |
| Wire Rope Size: | Φ7/32"×50'(Φ5.5mm×15.2m) |
| Wire Rope Type: | Aircraft A7×19 |
| Drum Size: | Φ2.3"×5.2"(Φ59mm×131.5mm) |
Packaging
| Item | Value |
|---|---|
| Winch Weight | 14.98kgs/33.0lbs |
| Gross Weight | 16.97kgs/37.3lbs |
| Box Dimension | 430×225×257 mm(16.9"×8.9"×10.1") |
性能数据
Line Pull
| 1 | 4,000lbs/1,814kgs |
|---|---|
| 2 | 3,735lbs/1,694kgs |
| 3 | 3,188lbs/1,446kgs |
| 4 | 2,780lbs/1,261kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 24FPM/7.3MPM | 55 | 49 |
| 500lbs/230kgs | 6.6FPM/2.0MPM | 210 | 172 |
| 1,000lbs/450kgs | 4.0FPM/1.2MPM | 290 | 260 |
| 1,500lbs/680kgs | 2.6FPM/0.8MPM | 350 | 310 |
| 2,000lbs/900kgs | 2.6FPM/0.8MPM | 350 | 310 |

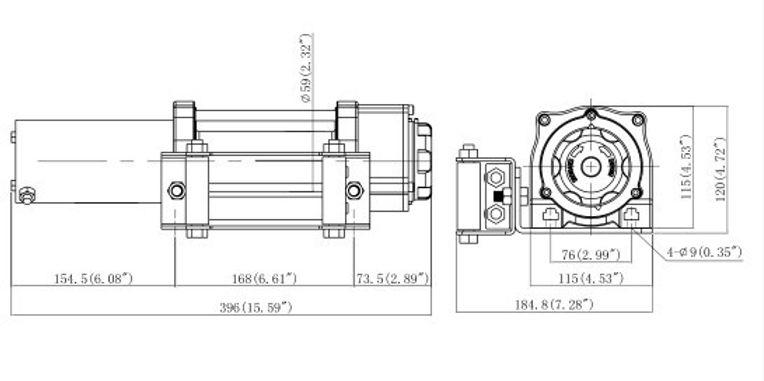

外形尺寸
