KINGONE
ORCA 13.0
电动绞盘 · ORCA 13.0
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 13,000 lbs（5,897 kgf）
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Title | ORCA 13.0 |
|---|---|
| Line Pull | 5,897kgs/13,000lbs |
| Motor | 12V/24V series wound |
| Brake | 100% full load double cone braking |
| Gear Ratio | 206:1 |
| Wire Rope Size | Φ9.5mmx27M(Φ3/8"x90') |
| Synthetic Rope Size | Φ10mmx27M(Φ11/28"x90') |
Packaging
| Title | Text |
|---|---|
| Winch Weight | 34kgs |
| Gross Weight | 36kgs |
| Box Dimension | 647×198×410 mm(25.5"×7.8"×16.1") |
性能数据
Line Pull
| Layer of Wire Rope | Max Line Pull |
|---|---|
| 1 | 13,000lbs/5,897kgs |
| 2 | 10,500lbs/4,763kgs |
| 3 | 9,300lbs/4,218kgs |
| 4 | 8200lbs/3720kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 36FPM/11MPM | 65 | 40 |
| 6,000lbs/2,722kgs | 11.5FPM/3.5MPM | 220 | 120 |
| 11,000lbs/4990kgs | 5.6FPM/1.7MPM | 340 | 170 |
| 13,000lbs/5,897kgs | 3.7FPM/1.13MPM | 395 | 205 |

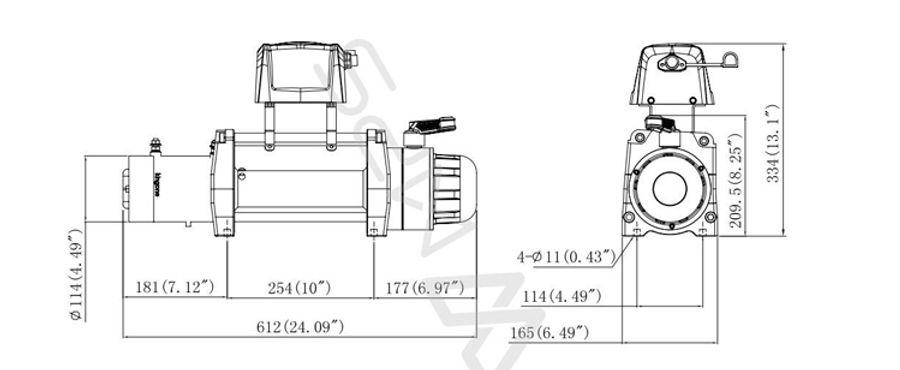

外形尺寸
