KINGONE
ORCA 9.0 SR
电动绞盘 · ORCA 9.0 SR
适用场景与工作类型
牵引绞盘
牵引绞盘
- 额定拉力
- 9,000 lbs（4,082 kgf）
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
← 技术规格由51winch提供 · 购买请前往 Mywinch选购平台
规格表
Specification
| Title | ORCA 9.0 SR |
|---|---|
| Line Pull | 4,082kgs/9,000lbs |
| Motor | 12V/24V series wound |
| Brake | 100% full load double cone braking |
| Gear Ratio | 243:1 |
| Wire Rope Size | Φ8mmx30M(Φ5/16"x100') |
| Synthetic Rope Size | Φ8.0mmx27M(Φ5/16"x90') |
Packaging
| Title | Text |
|---|---|
| Winch Weight | 43kgs |
| Gross Weight | 45kgs |
| Box Dimension | 647×198×410 mm(25.5"×7.8"×16.1") |
性能数据
Line Pull
| Layer of Wire Rope | Max Line Pull |
|---|---|
| 1 | 9,000lbs/4083kgs |
| 2 | 7370lbs/3342kgs |
| 3 | 6230lbs/2852kgs |
| 4 | 5390lbs/2447kgs |
Line Speed and AMP Draw (1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
|---|---|---|---|
| No Load | 34.4FPM/10.5MPM | 65 | 40 |
| 2,000lbs/907kgs | 23.6FPM/7.2MPM | 135 | 85 |
| 9,000lbs/4,083kgs | 5.9FPM/1.8MPM | 405 | 215 |

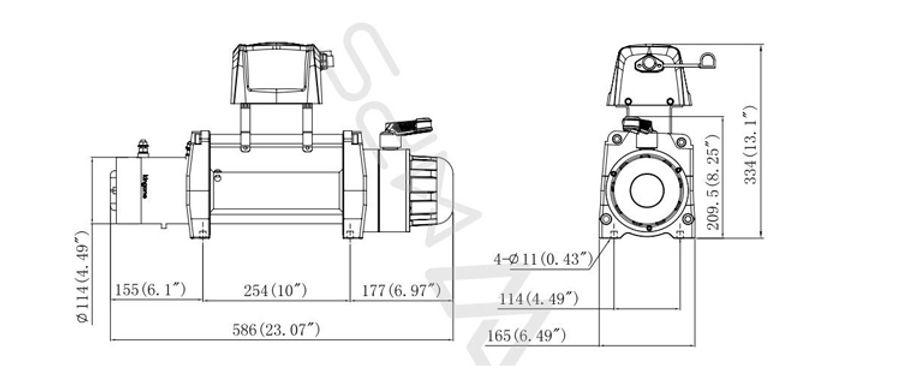

外形尺寸
